Release Info
| Catalog ID | NAM-WL2-5800 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 14, 1990 |
| Publisher | Namco |
| Developer | Now Production |
| Players | 2 |
| Peripherals | Famicom Controller |

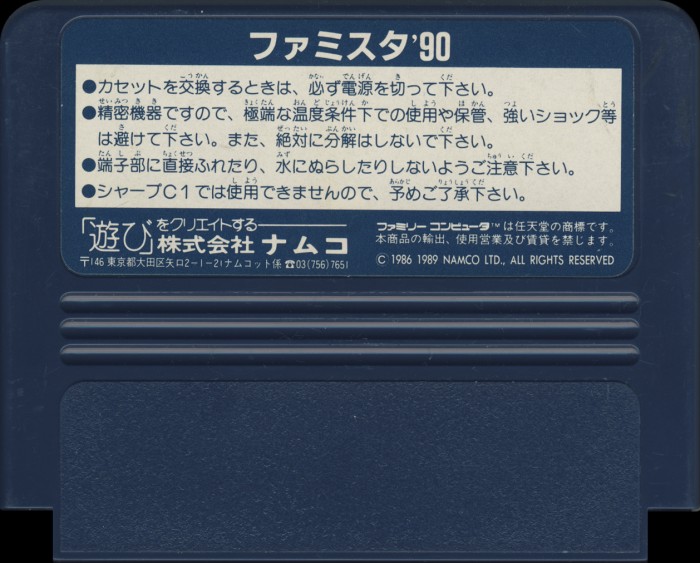

Cart Properties
| Cart Producer | |
|---|---|
| Color | Blue |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

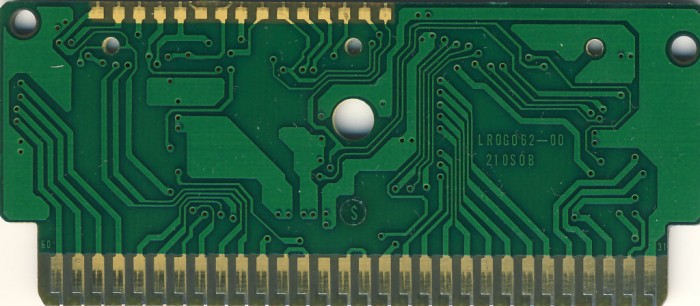

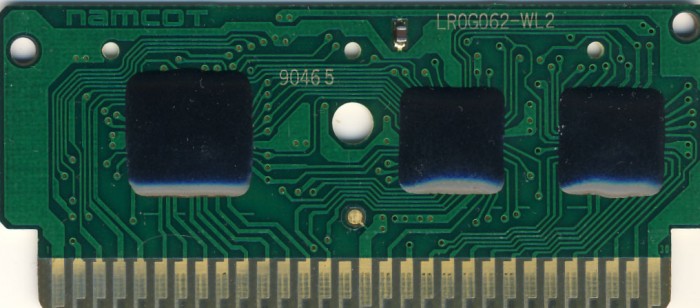

PCB Properties
| Name | LROG062-00 |
|---|---|
| PCB Producer | |
| Manufacturer | Sharp |
| Mfg Range | 9044 - 9106 (4) |
| Est First Run | November 1990 |
| PCB Class | NAMCOT-340 |
| iNES Mapper | 210 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 340 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 02738C68 | 4 |
| CHR0 | Not Present | 128 KB | 5674DF31 | 4 |
| N/A | ROMs Combined | 384 KB | 1DC0F740 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Sharp | LROG062 WL2 | Chip-on-Board PCB | PCB | 9046 5 | 9046 | |
| __Unknown | EP2000 | Bonded ROM 256 KB | EPOXY | ||||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP340 | Namcot 340 | EPOXY |
