Release Info
| Catalog ID | NAM-F92-5000 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 20, 1991 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

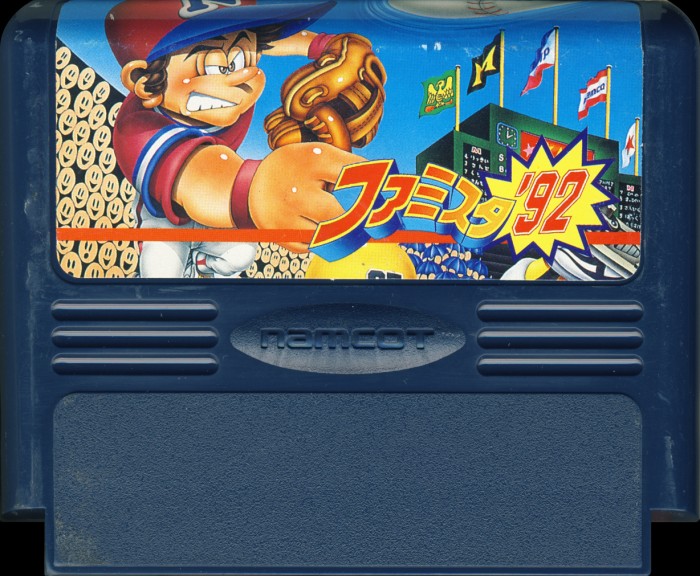

Cart Properties
| Cart Producer | |
|---|---|
| Color | Blue |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties

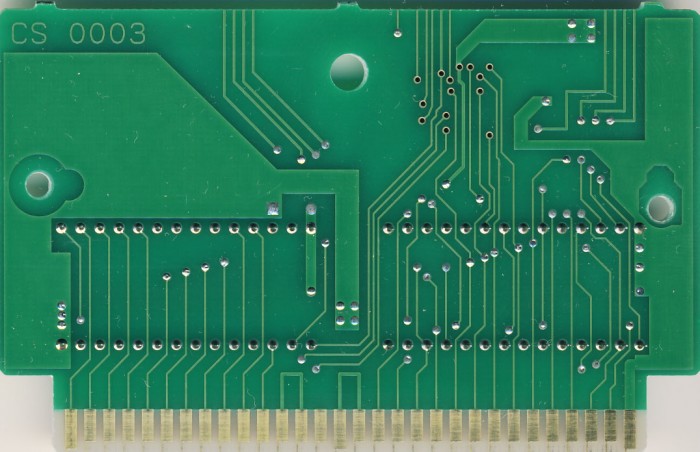

| Name | CS 0003 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 9146 - 9147 (3) |
| Est First Run | November 1991 |
| PCB Class | NAMCOT-340 |
| iNES Mapper | 210 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 340 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT F92 PRG | 128 KB | FDBCA5D1 | 3 |
| CHR0 | NAMCOT F92 CHR | 128 KB | 7801BC9E | 3 |
| N/A | ROMs Combined | 256 KB | 6EC51DE5 | 3 |

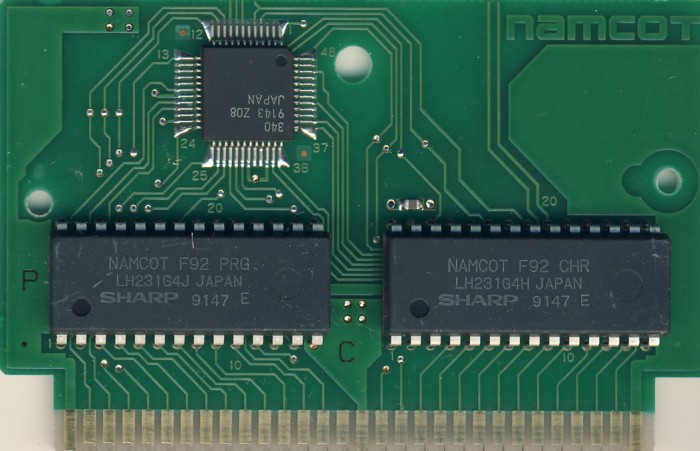

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Sharp | LH231G 4J | Mask ROM 128 KB | DIP-28 | 9147 E | 9147 | |
| C | Sharp | LH231G 4H | Mask ROM 128 KB | DIP-28 | 9147 E | 9147 | |
| Fujitsu | 340 | Namcot 340 | TQFP-48 | 9143 Z08 | 9143 |
