Release Info
| Catalog ID | NAM-F91-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 21, 1990 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Blue |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties

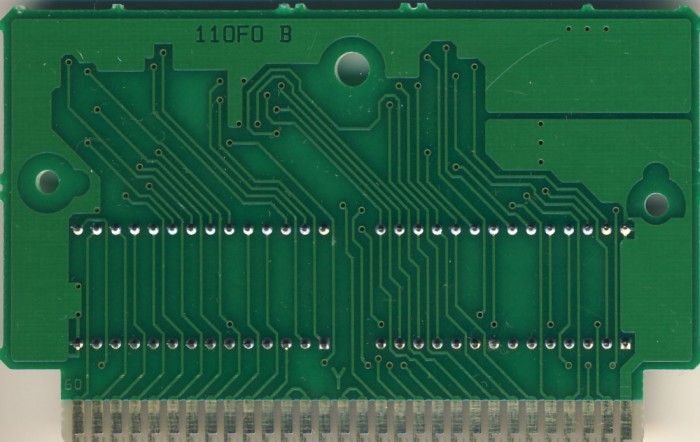

| Name | 110F0 B |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 9045 - 9048 (5) |
| Est First Run | November 1990 |
| PCB Class | NAMCOT-175 |
| iNES Mapper | 210 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 175 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTF91P | 128 KB | 8E1E1181 | 5 |
| CHR0 | NAMCOTF91C | 128 KB | C5526943 | 5 |
| N/A | ROMs Combined | 256 KB | 808606F0 | 5 |

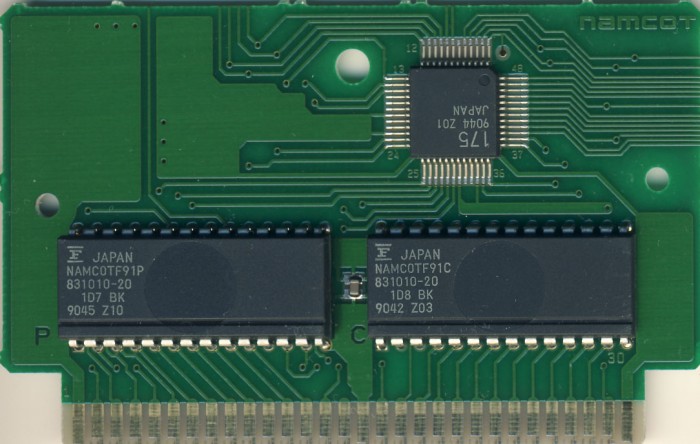

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Fujitsu | 831010-20 1D7 BK | Mask ROM 128 KB | DIP-28 | 9045 Z10 | 9045 | |
| C | Fujitsu | 831010-20 1D8 BK | Mask ROM 128 KB | DIP-28 | 9042 Z03 | 9042 | |
| Fujitsu | 175 | Namcot 175 | TQFP-48 | 9044 Z01 | 9044 |
