Release Info
| Catalog ID | NAM-F90-5800 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 19, 1989 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

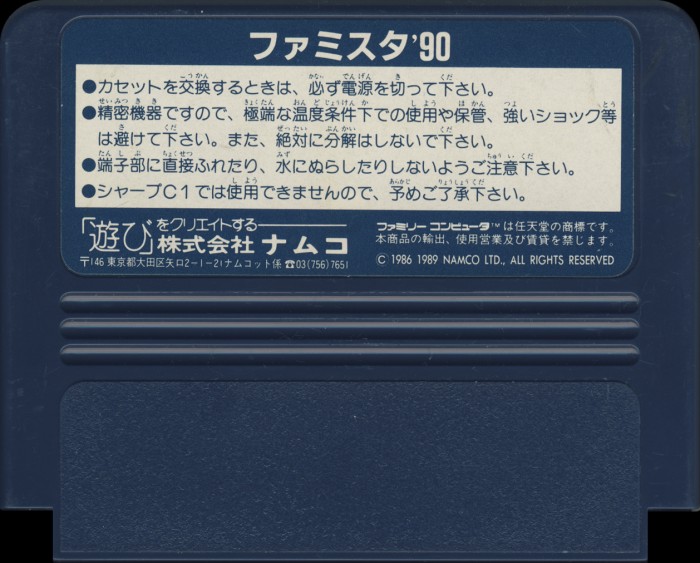

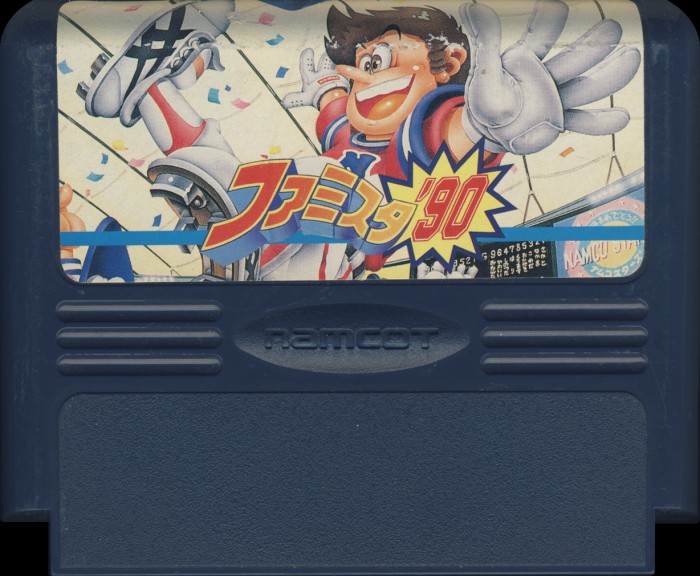

Cart Properties
| Cart Producer | |
|---|---|
| Color | Blue |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

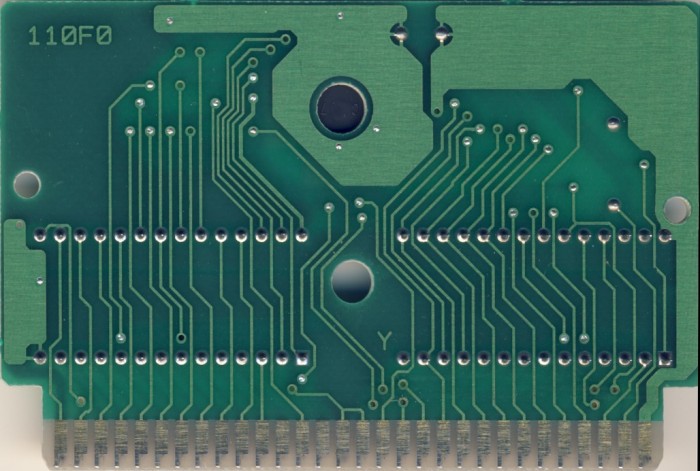

PCB Properties
| Name | 110F0 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8946 - 8952 (8) |
| Est First Run | November 1989 |
| PCB Class | NAMCOT-163 |
| iNES Mapper | 19 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 163 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT F90 PRG | 128 KB | 429FD177 | 8 |
| CHR0 | NAMCOT F90 CHR | 128 KB | 11AEABDB | 8 |
| N/A | ROMs Combined | 256 KB | 0C1792DA | 8 |

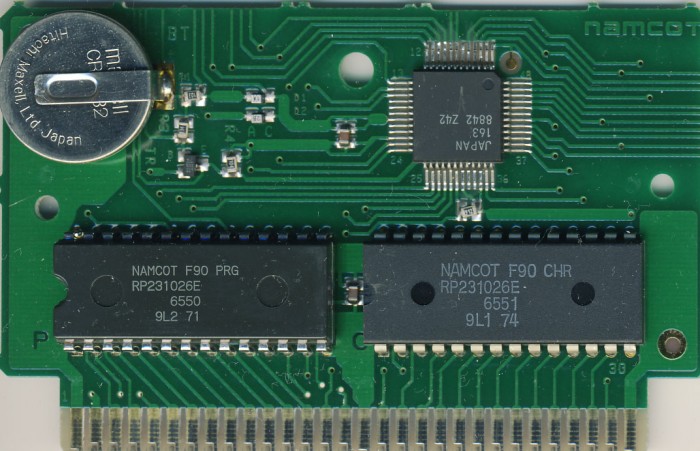

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Ricoh | RP231026E 6550 | Mask ROM 128 KB | DIP-28 | 9L2 71 | 8946 | |
| C | Ricoh | RP231026E 6551 | Mask ROM 128 KB | DIP-28 | 9L1 74 | 8945 | |
| Fujitsu | 163 | Namcot 163 | TQFP-48 | 8842 Z42 | 8842 |
