Release Info
| Catalog ID | NAM-FS88-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 20, 1988 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | 3416 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8846 - 8909 (7) |
| Est First Run | November 1988 |
| PCB Class | NAMCOT-3416 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 118 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTF88P | 128 KB | 7E4966E4 | 7 |
| CHR0 | NAMCOTF88C | 64 KB | 09D61F84 | 7 |
| N/A | ROMs Combined | 192 KB | AE321339 | 7 |

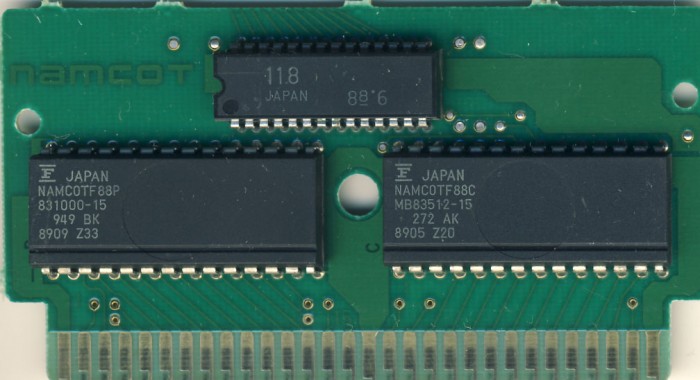

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Fujitsu | 831000-15 949 BK | Mask ROM 128 KB | DIP-28 | 8909 Z33 | 8909 | |
| C | Fujitsu | MB83512-15 272 AK | Mask ROM 64 KB | DIP-28 | 8905 Z20 | 8905 | |
| Panasonic | 118 | Namcot 118 | DIP-28 | 8 | 8834 |
