Release Info
| Catalog ID | NAM-FS-3900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 10, 1986 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

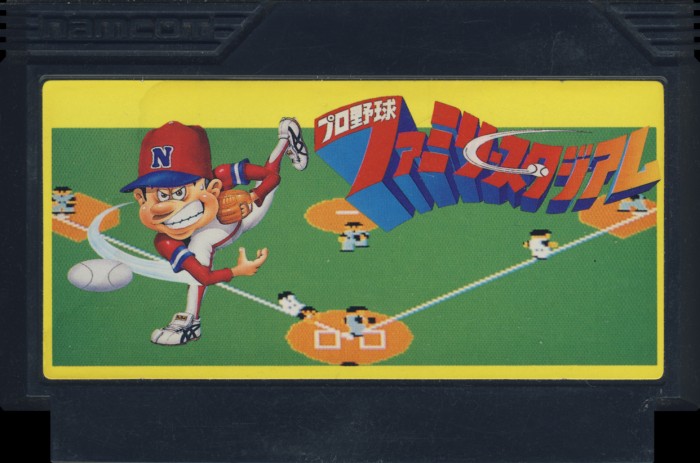

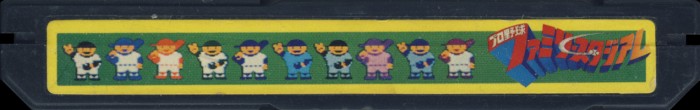

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

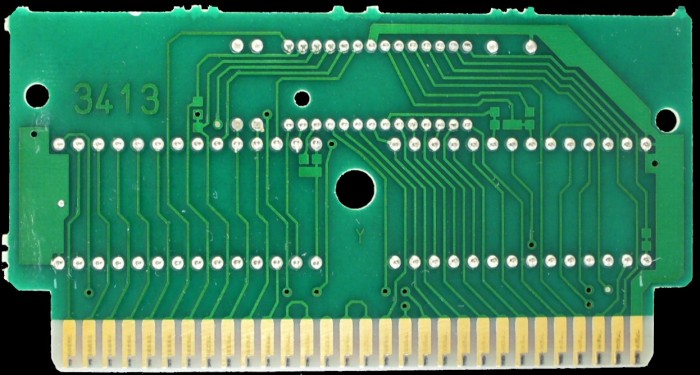

PCB Properties
| Name | 3413 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8648 - 8716 (10) |
| Est First Run | December 1986 |
| PCB Class | NAMCOT-3413 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 108 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTFSPR | 64 KB | 18C0623B | 10 |
| CHR0 | NAMCOTFSCH | 32 KB | 9688A5BA | 10 |
| N/A | ROMs Combined | 96 KB | DCDF06DE | 10 |

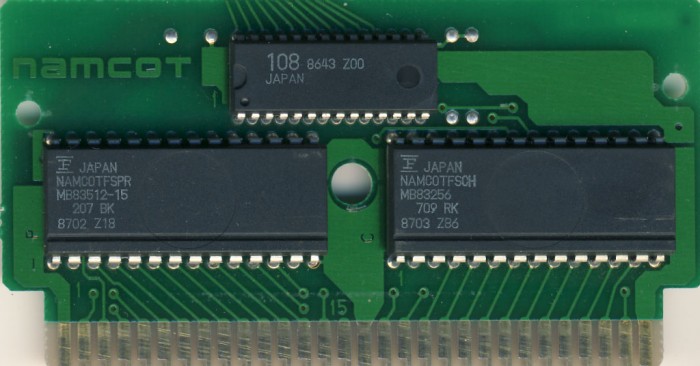

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Fujitsu | MB83512-15 207 BK | Mask ROM 64 KB | DIP-28 | 8702 Z18 | 8702 | |
| C | Fujitsu | MB83256 709 RK | Mask ROM 32 KB | DIP-28 | 8703 Z86 | 8703 | |
| Fujitsu | 108 | Namcot 108 | DIP-28 | 8643 Z00 | 8643 |
