Release Info
| Catalog ID | NAM-NDDII-4500-14 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 18, 1986 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

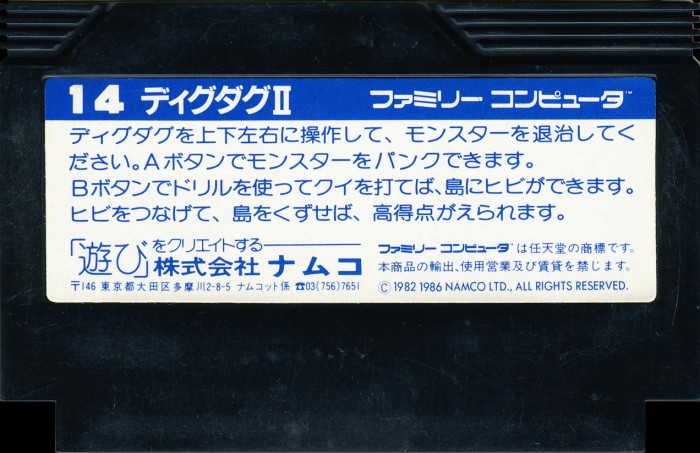

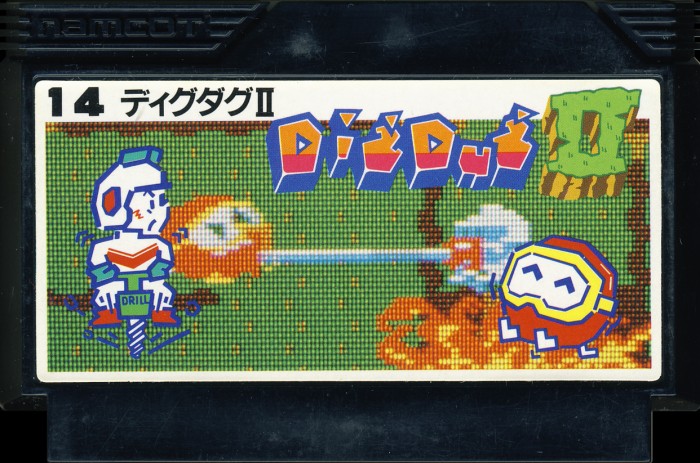

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 14 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

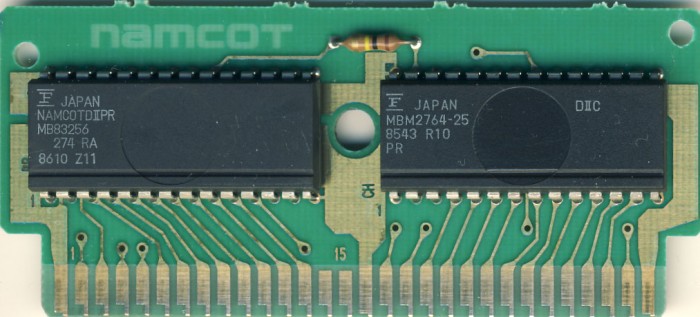

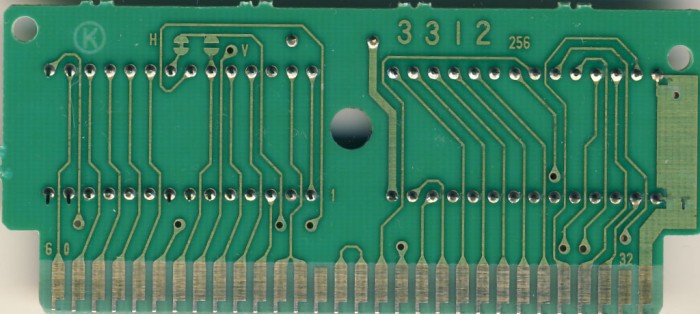

PCB Properties
| Name | 3312 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8610 |
| Est First Run | March 1986 |
| PCB Class | NAMCOT-3312 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTDâ…¡PR | 32 KB | BFFCF247 | 1 |
| CHR0 | Dâ…¡C | 8 KB | A221A698 | 1 |
| N/A | ROMs Combined | 40 KB | 2BE254E9 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Fujitsu | MB83256 274 RA | Mask ROM 32 KB | DIP-28 | 8610 Z11 | 8610 | |
| CH | Fujitsu | MBM2764-25 | PROM 8 KB | DIP-28 | 8543 R10 | 8543 | PR |
