Release Info
| Catalog ID | NAM-FMII-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 25, 1988 |
| Publisher | Namco |
| Developer | Namco |
| Players | 1 |
| Peripherals | Famicom Controller |

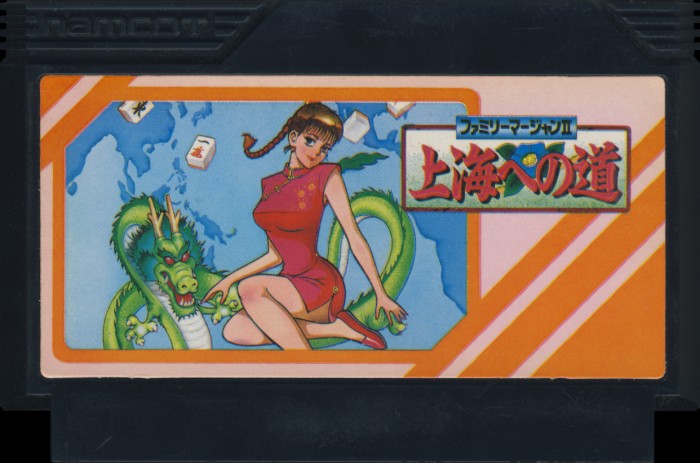

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

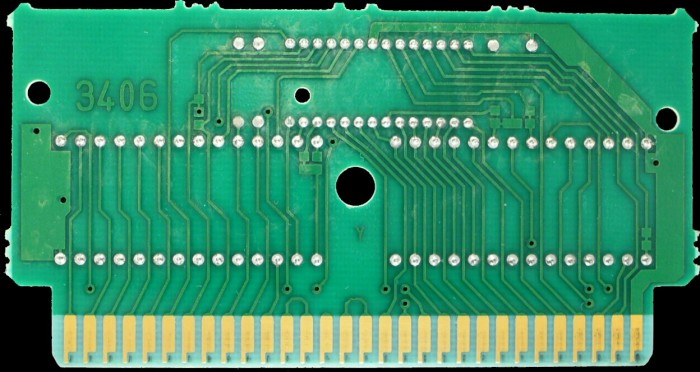

PCB Properties
| Name | 3406 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8838 - 9118 (4) |
| Est First Run | September 1988 |
| PCB Class | NAMCOT-3406 |
| iNES Mapper | 206 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 119 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTFM2P | 128 KB | 3AE06D19 | 4 |
| CHR0 | NAMCOTFM2C | 64 KB | BC58C66E | 4 |
| N/A | ROMs Combined | 192 KB | DD29FD59 | 4 |

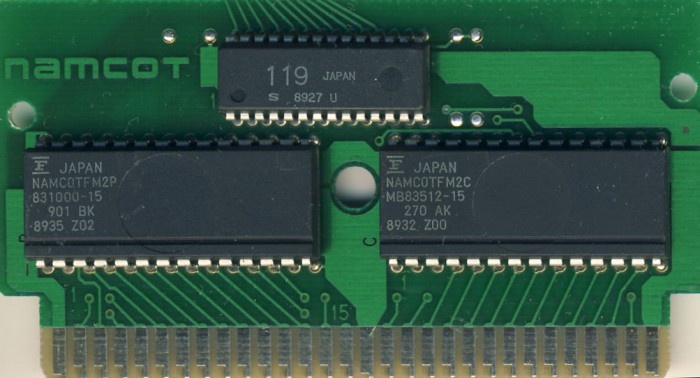

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Fujitsu | 831000-15 901 BK | Mask ROM 128 KB | DIP-28 | 8935 Z02 | 8935 | |
| C | Fujitsu | MB83512-15 270 AK | Mask ROM 64 KB | DIP-28 | 8932 Z00 | 8932 | |
| Sharp | 119 | Namcot 119 | DIP-28 | 8927 U | 8927 |
