Release Info
| Catalog ID | TGN-020-SK |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | Tengen |
| Developer | Tengen |
| Players | 2 |
| Peripherals | NES Controller |

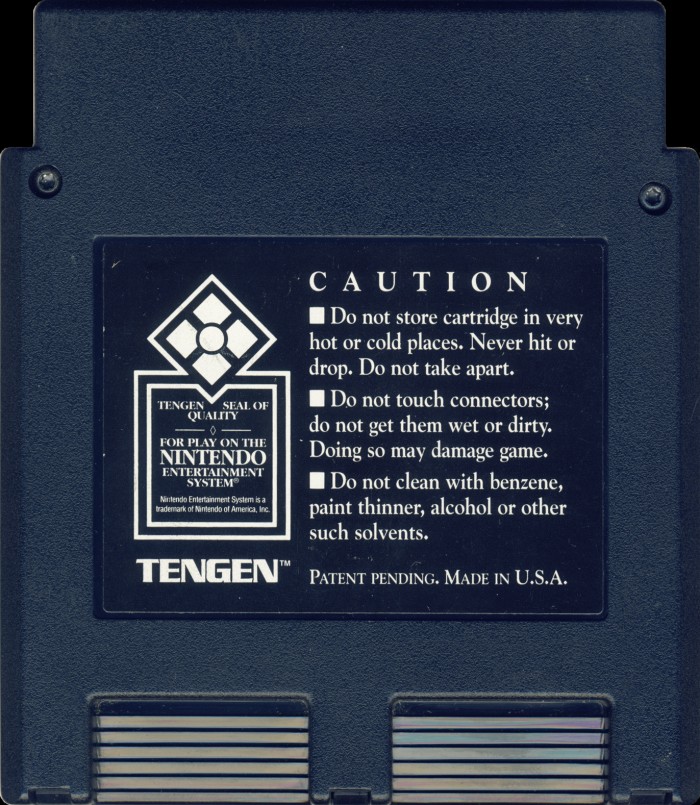

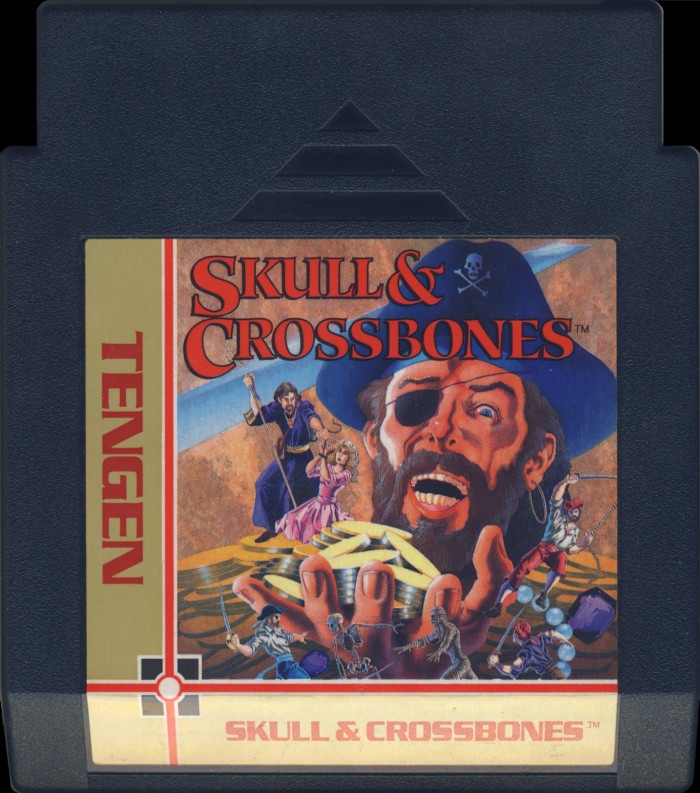

Cart Properties
| Cart Producer | Tengen |
|---|---|
| Color | Black |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

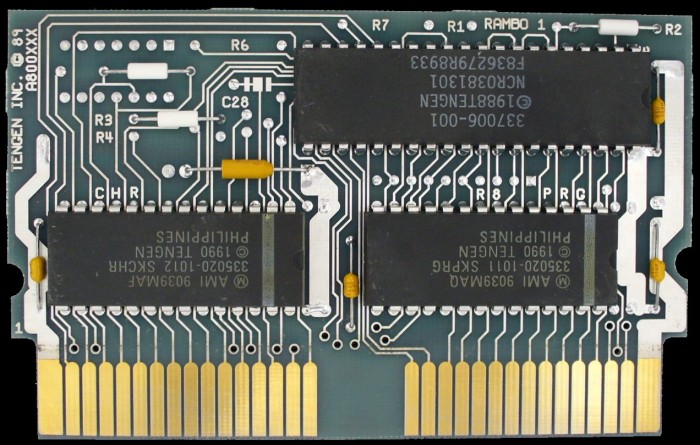

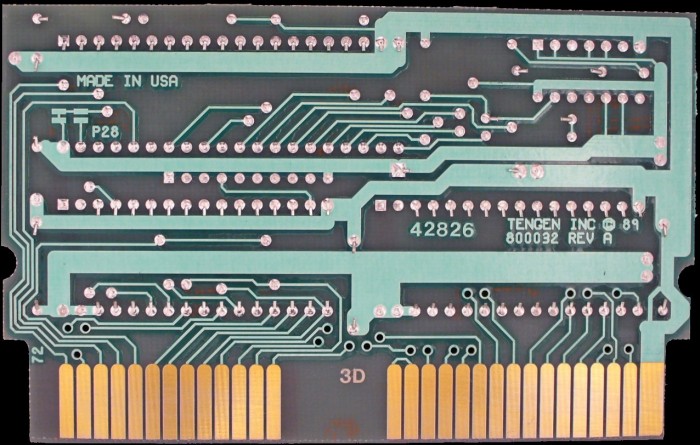

PCB Properties
| Name | 800032 REV A |
|---|---|
| PCB Producer | Tengen |
| Manufacturer | Key Tronic |
| Mfg Range | 9039 |
| Est First Run | September 1990 |
| PCB Class | TENGEN-800032 |
| iNES Mapper | 64 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 337006 |
| Hardware | 337006 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 335020-1011 SKPRG | 128 KB | 0857DF48 | 3 |
| CHR0 | 335020-1012 SKCHR | 64 KB | D0BF8C50 | 3 |
| N/A | ROMs Combined | 192 KB | B422A67A | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | AMI | AM231002 | Mask ROM 128 KB | DIP-28 | 9039 MAQ | 9039 | |
| CHR | AMI | AM23512 | Mask ROM 64 KB | DIP-28 | 9039 MAF | 9039 | |
| RAMBO 1 | NCR | 337006-001 | Tengen RAMBO-1 | DIP-40 | 8933 F836279R | 8933 | NCR0381301 |
