Release Info
| Catalog ID | NAM-FC-3900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | January 6, 1988 |
| Publisher | Namco |
| Developer | Game Studio |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

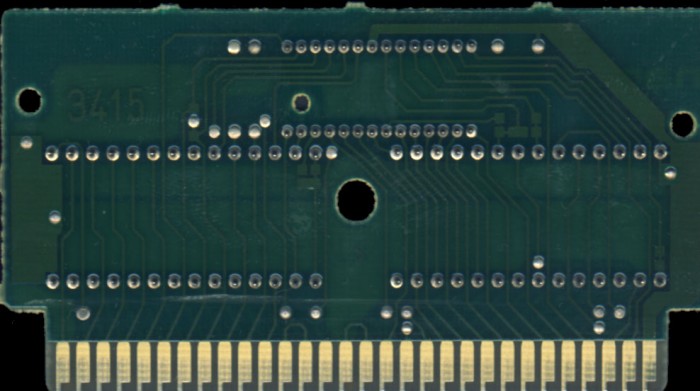

PCB Properties
| Name | 3415 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8749 - 8912 (7) |
| Est First Run | December 1987 |
| PCB Class | NAMCOT-3415 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 109 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT FC PRG | 128 KB | A50C51FB | 7 |
| CHR0 | NAMCOT FC CHR | 32 KB | 888E4DFB | 7 |
| N/A | ROMs Combined | 160 KB | 9CBC8253 | 7 |

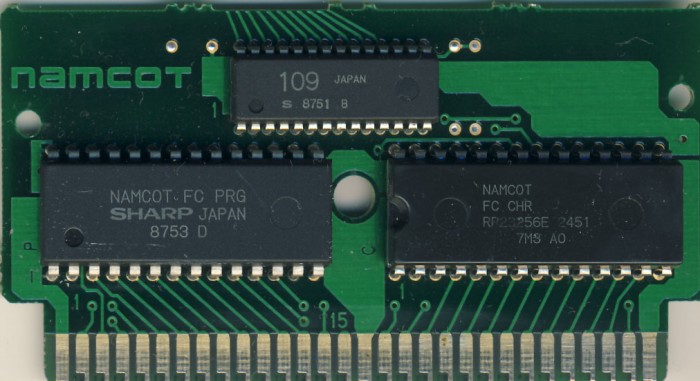

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8753 D | 8753 | |
| C | Ricoh | RP23256E 2451 | Mask ROM 32 KB | DIP-28 | 7M3 A0 | 8752 | |
| Sharp | 109 | Namcot 109 | DIP-28 | 8751 B | 8751 |
