Release Info
| Catalog ID | NAM-NGG-4500-05 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 15, 1985 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

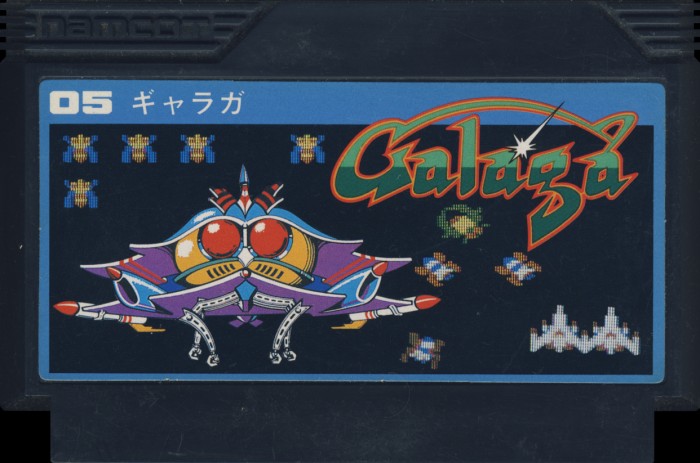

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 05 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

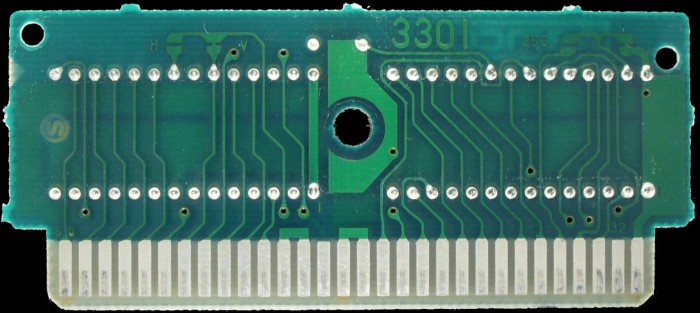

PCB Properties
| Name | 3301 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8507 - 8507 (3) |
| Est First Run | February 1985 |
| PCB Class | NAMCOT-3301 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT GG PRG | 16 KB | AA97D0A0 | 3 |
| CHR0 | NAMCOT GG CHR | 8 KB | E2D5964E | 8 |
| N/A | ROMs Combined | 24 KB | E911BCC4 | 3 |

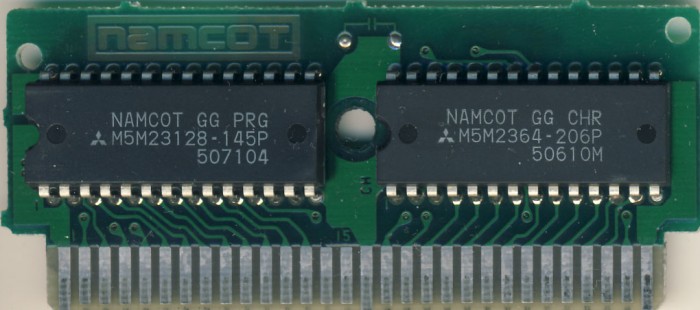

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | M5M23128 145P | Mask ROM 16 KB | DIP-28 | 507 104 | 8507 | |
| CH | Mitsubishi | M5M2364 206P | Mask ROM 8 KB | DIP-28 | 506 10M | 8506 |
