Release Info
| Catalog ID | NAM-NC-5900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | May 27, 1988 |
| Publisher | Namco |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | LROG038-03 |
|---|---|
| PCB Producer | |
| Manufacturer | Sharp |
| Mfg Range | 8813 - 8942 (5) |
| Est First Run | March 1988 |
| PCB Class | NAMCOT-163 |
| iNES Mapper | 19 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 163 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 2B825CE1 | 5 |
| CHR0 | Not Present | 256 KB | 6489B8DC | 5 |
| N/A | ROMs Combined | 512 KB | 4C5836BD | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

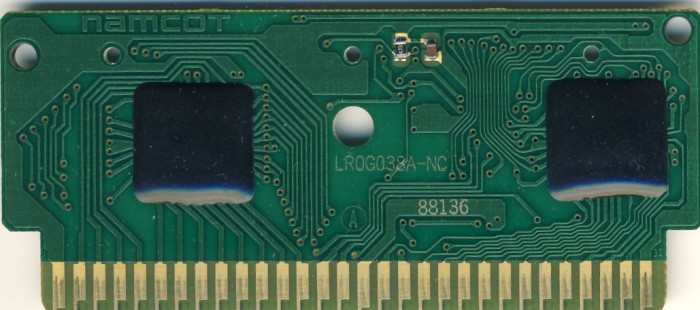

| PCB | Sharp | LROG038A NC | Chip-on-Board PCB | PCB | 8813 6 | 8813 | |
| __Unknown | EP2000 | Bonded ROM 256 KB | EPOXY | ||||
| __Unknown | EP2000 | Bonded ROM 256 KB | EPOXY | ||||

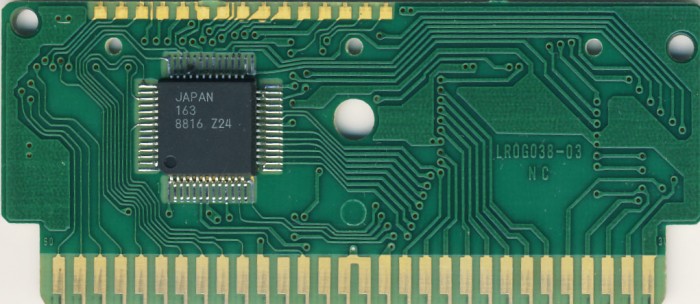

| Fujitsu | 163 | Namcot 163 | TQFP-48 | 8816 Z24 | 8816 |
