Release Info
| Catalog ID | NAM-NBL-3900-16 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 18, 1986 |
| Publisher | Namco |
| Developer | Namco |
| Players | 1 |
| Peripherals | Famicom Controller |

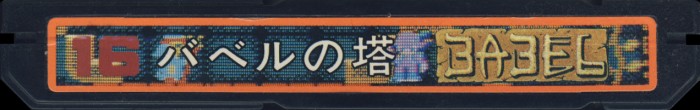

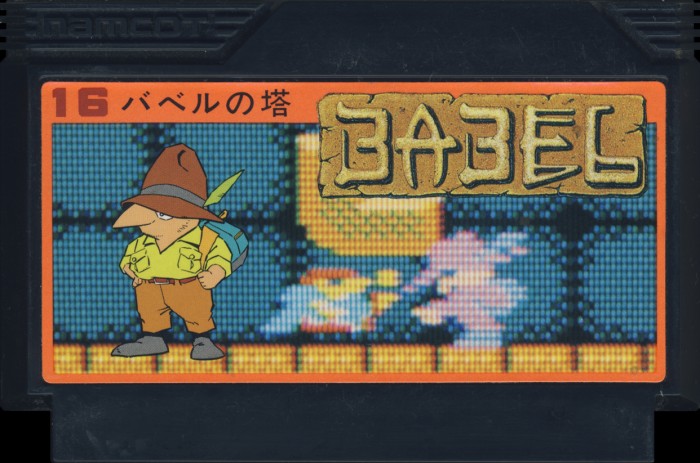

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 16 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

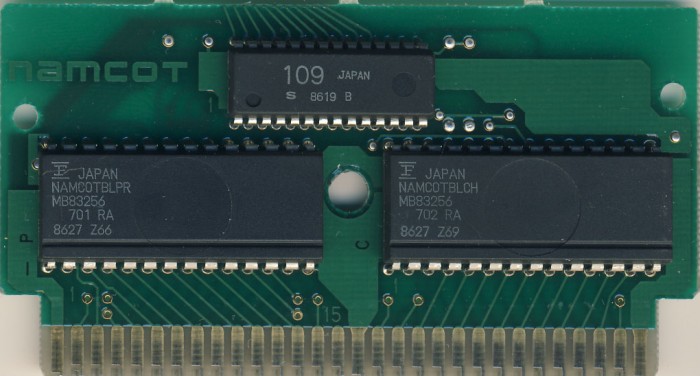

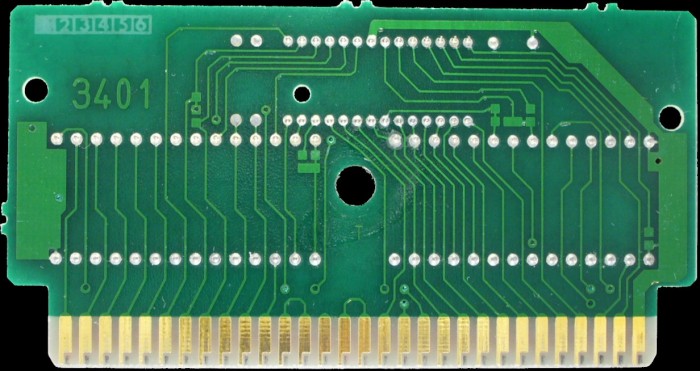

PCB Properties
| Name | 3401 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8626 - 8627 (2) |
| Est First Run | June 1986 |
| PCB Class | NAMCOT-3401 |
| iNES Mapper | 206 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 109 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTBLPR | 32 KB | 899A0067 | 2 |
| CHR0 | NAMCOTBLCH | 32 KB | 134FC0C6 | 2 |
| N/A | ROMs Combined | 64 KB | 8AF25130 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Fujitsu | MB83256 701 RA | Mask ROM 32 KB | DIP-28 | 8627 Z66 | 8627 | |
| C | Fujitsu | MB83256 702 RA | Mask ROM 32 KB | DIP-28 | 8627 Z69 | 8627 | |
| Sharp | 109 | Namcot 109 | DIP-28 | 8619 B | 8619 |
