Release Info
| Catalog ID | NAM-FT-3900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 11, 1987 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

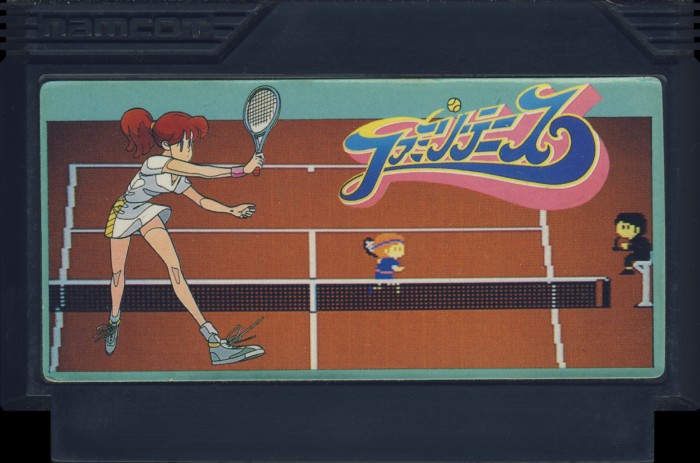

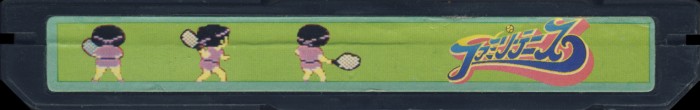

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

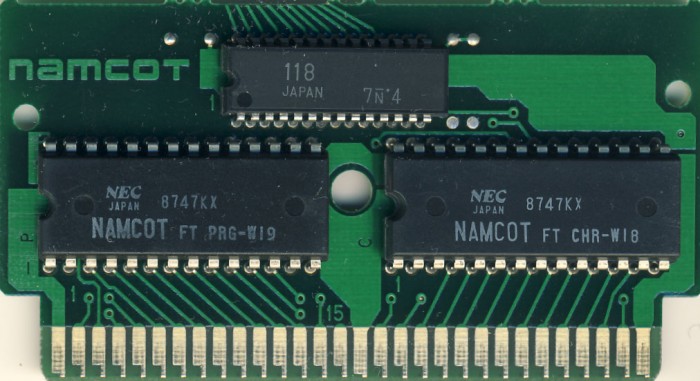

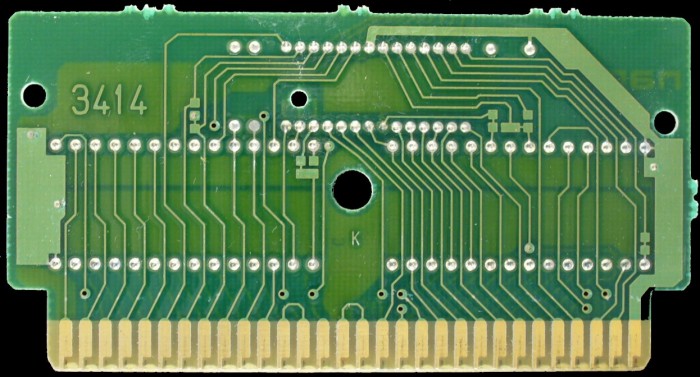

PCB Properties
| Name | 3414 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8747 - 8807 (5) |
| Est First Run | November 1987 |
| PCB Class | NAMCOT-3414 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 118 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT FT PRG | 64 KB | 481608A9 | 5 |
| CHR0 | NAMCOT FT CHR | 64 KB | FF1297D8 | 5 |
| N/A | ROMs Combined | 128 KB | A49253C6 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | NEC | UPD23C512 | Mask ROM 64 KB | DIP-28 | 8747 KX | 8747 | |
| C | NEC | UPD23C512 | Mask ROM 64 KB | DIP-28 | 8747 KX | 8747 | |
| Panasonic | 118 | Namcot 118 | DIP-28 | 7 | 8745 |
