Release Info
| Catalog ID | NAM-KA-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 18, 1987 |
| Publisher | Namco |
| Developer | Data East |
| Players | 1 |
| Peripherals | Famicom Controller |

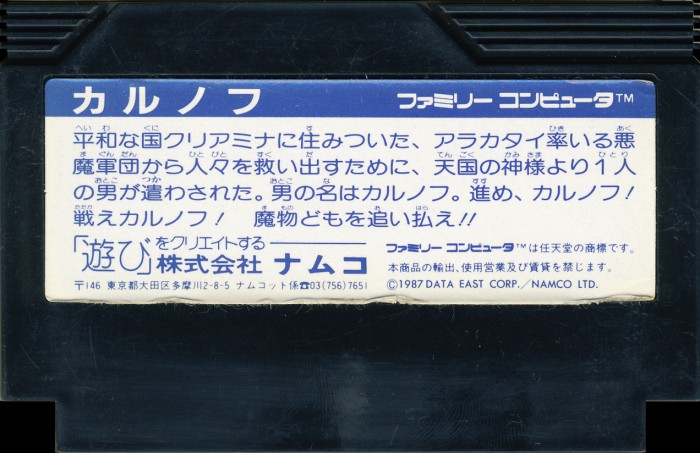

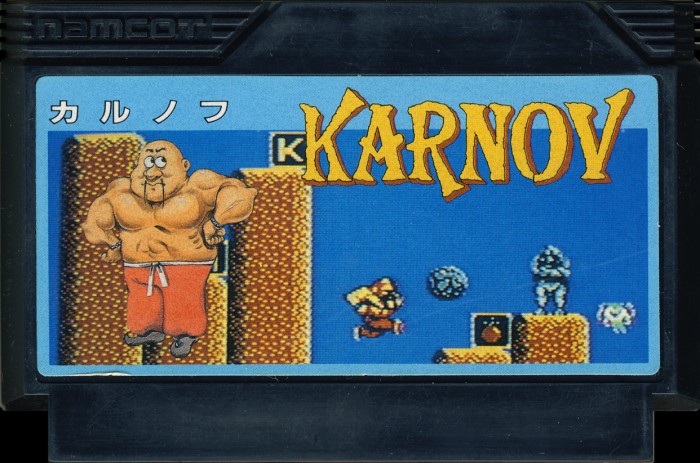

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

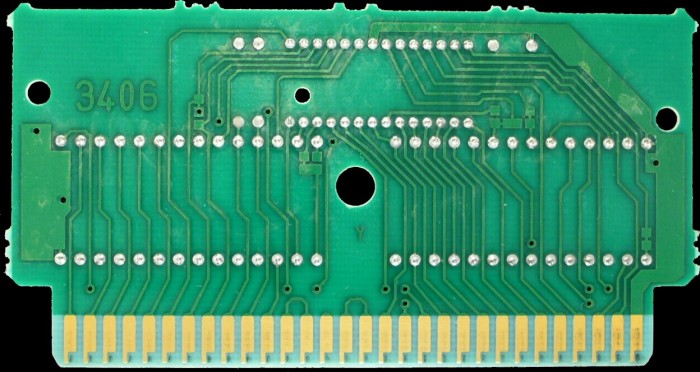

PCB Properties
| Name | 3406 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8749 - 8749 (2) |
| Est First Run | December 1987 |
| PCB Class | NAMCOT-3406 |
| iNES Mapper | 206 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 108 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT KA PRG | 128 KB | 198237C5 | 2 |
| CHR0 | NAMCOT KA CHR | 64 KB | BF232D8E | 2 |
| N/A | ROMs Combined | 192 KB | 267E592F | 2 |

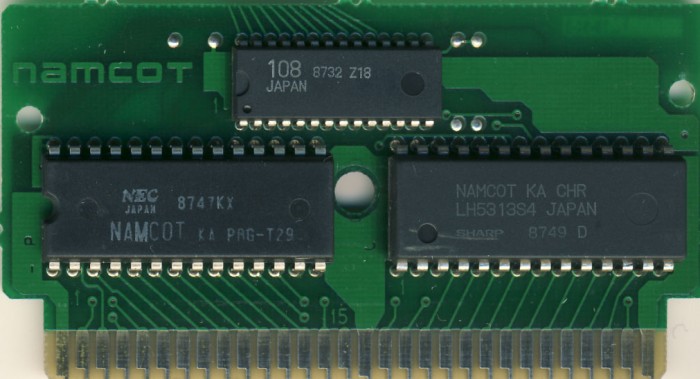

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8747 KX | 8747 | |
| C | Sharp | LH5313 S4 | Mask ROM 64 KB | DIP-28 | 8749 D | 8749 | |
| Fujitsu | 108 | Namcot 108 | DIP-28 | 8732 Z18 | 8732 |
