Release Info
| Catalog ID | NAM-DB-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | January 7, 1987 |
| Publisher | Namco |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

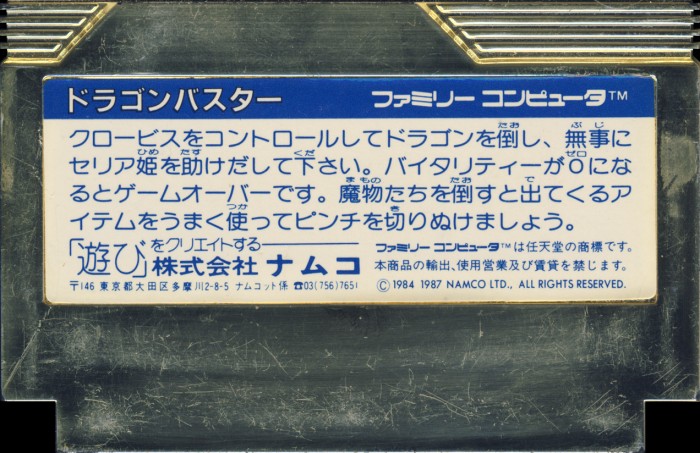

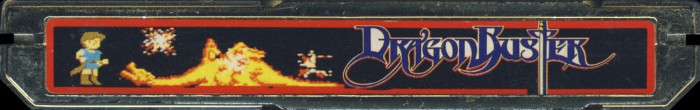

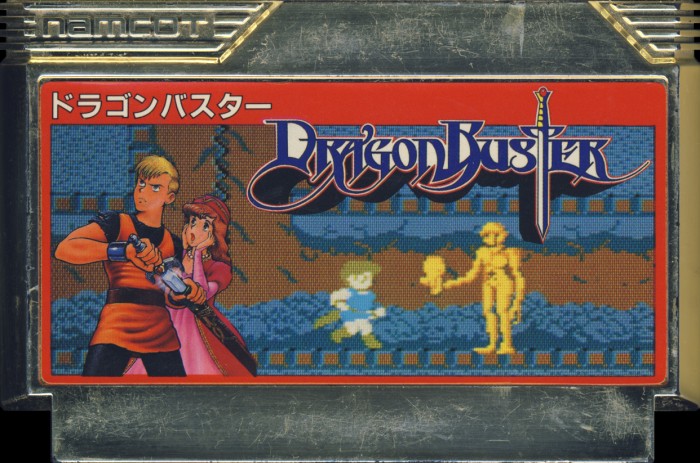

Cart Properties
| Cart Producer | |
|---|---|
| Color | Gold |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

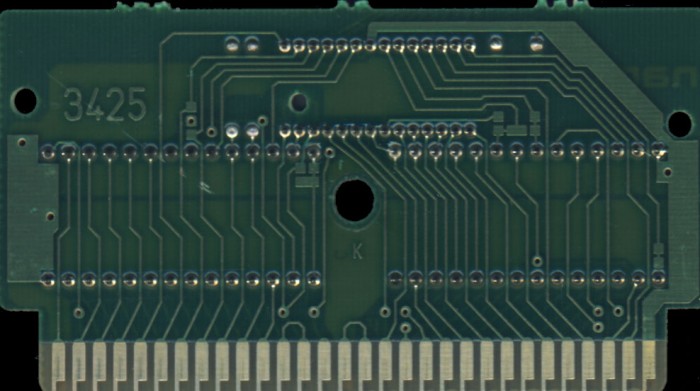

PCB Properties
| Name | 3425 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8649 - 8708 (8) |
| Est First Run | December 1986 |
| PCB Class | NAMCOT-3425 |
| iNES Mapper | 95 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 109 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT DB PRG | 128 KB | C7A79BE2 | 8 |
| CHR0 | NAMCOT DB CHR | 32 KB | 9F83FEFA | 8 |
| N/A | ROMs Combined | 160 KB | 7B6DC772 | 8 |

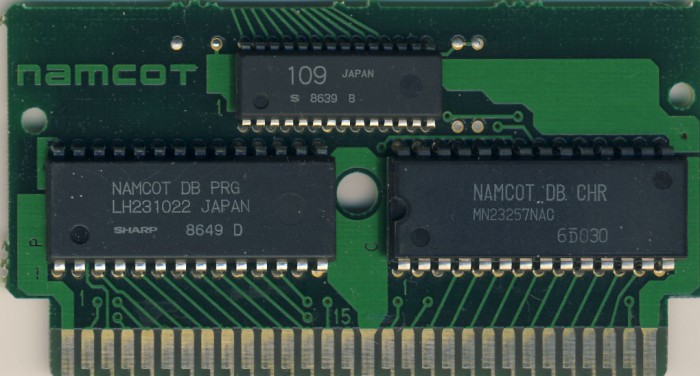

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Sharp | LH2310 22 | Mask ROM 128 KB | DIP-28 | 8649 D | 8649 | |
| C | Panasonic | MN23257 NAC | Mask ROM 32 KB | DIP-28 | 6 30 | 8649 | |
| Sharp | 109 | Namcot 109 | DIP-28 | 8639 B | 8639 |
