Release Info
| Catalog ID | NAM-FJ-3900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 24, 1987 |
| Publisher | Namco |
| Developer | Namco |
| Players | 1 |
| Peripherals | Famicom Controller |

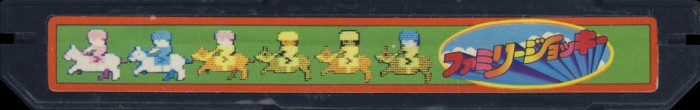

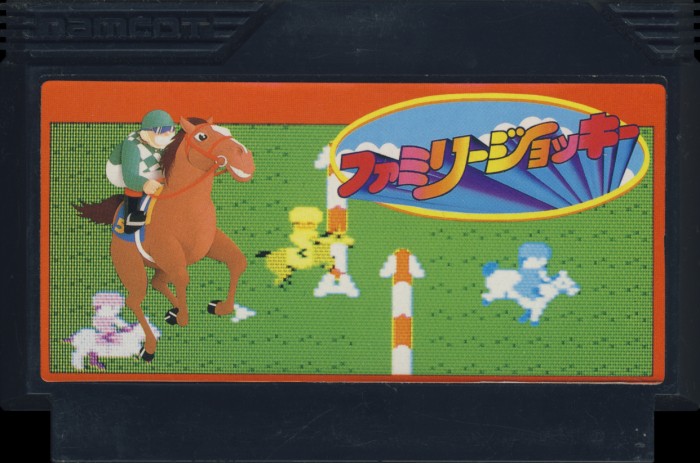

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

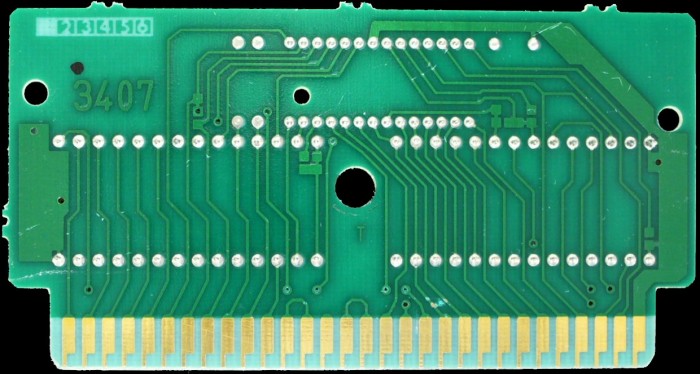

PCB Properties
| Name | 3407 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8713 - 8724 (6) |
| Est First Run | March 1987 |
| PCB Class | NAMCOT-3407 |
| iNES Mapper | 206 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 118 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT FJ PRG | 32 KB | AC75F8CD | 6 |
| CHR0 | NAMCOT FJ CHR | 32 KB | 14416358 | 6 |
| N/A | ROMs Combined | 64 KB | 3719A26D | 6 |

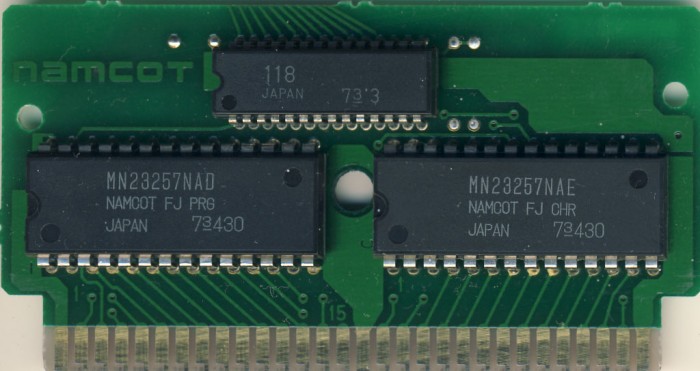

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Panasonic | MN23257 NAD | Mask ROM 32 KB | DIP-28 | 7 30 | 8713 | |
| CH | Panasonic | MN23257 NAE | Mask ROM 32 KB | DIP-28 | 7 30 | 8713 | |
| Panasonic | 118 | Namcot 118 | DIP-28 | 7 | 8713 |
