Release Info
| Catalog ID | NAM-NTD-4900-07 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 6, 1985 |
| Publisher | Namco |
| Developer | Namco |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 07 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

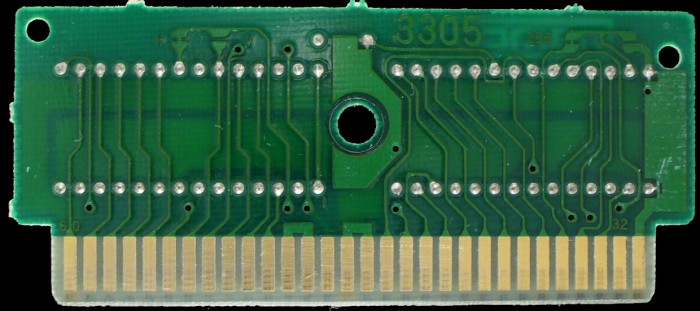

PCB Properties
| Name | 3305 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8528 - 8618 (6) |
| Est First Run | July 1985 |
| PCB Class | NAMCOT-3305 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTTDPR | 32 KB | AF6E8571 | 5 |
| CHR0 | NAMCOT TD CHR | 8 KB | 6DC7E8EA | 5 |
| N/A | ROMs Combined | 40 KB | EB764567 | 5 |

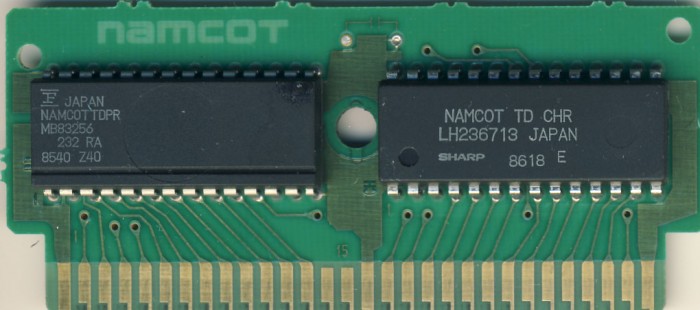

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Fujitsu | MB83256 232 RA | Mask ROM 32 KB | DIP-28 | 8540 Z40 | 8540 | |
| CH | Sharp | LH2367 13 | Mask ROM 8 KB | DIP-28 | 8618 E | 8618 |
