Release Info
| Catalog ID | NAM-NPL-4500-10 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 21, 1985 |
| Publisher | Namco |
| Developer | Namco |
| Players | 1 |
| Peripherals | Famicom Controller |

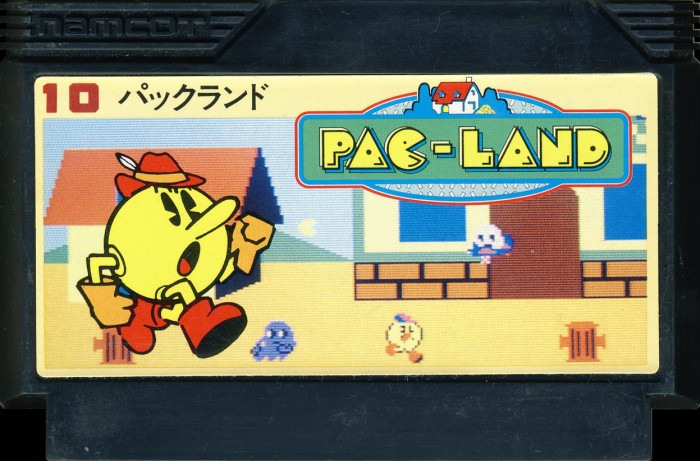

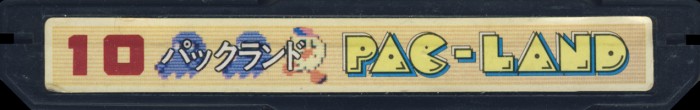

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 10 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

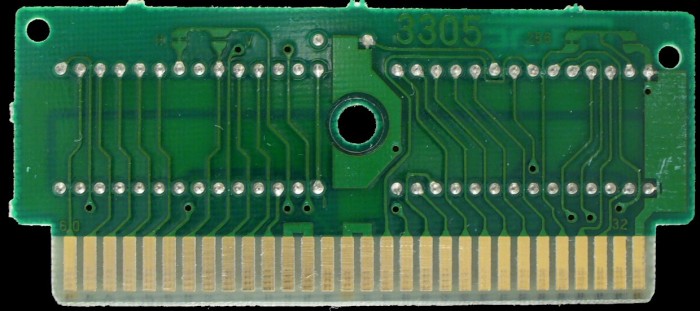

PCB Properties
| Name | 3305 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8540 - 8544 (4) |
| Est First Run | October 1985 |
| PCB Class | NAMCOT-3305 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT PL PRG | 32 KB | 6E53EAA9 | 4 |
| CHR0 | NAMCOT PL CHR | 8 KB | 80AE65C2 | 4 |
| N/A | ROMs Combined | 40 KB | 89D42098 | 4 |

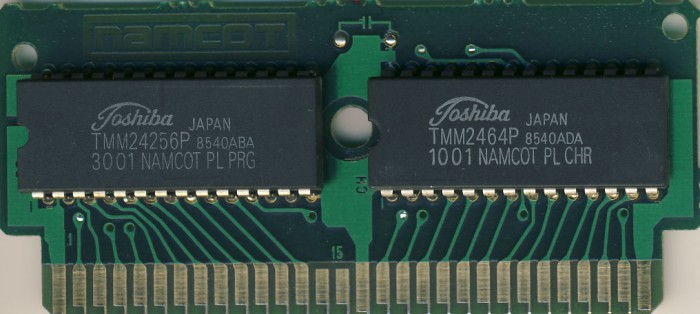

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Toshiba | TMM24256P 3001 | PROM 32 KB | DIP-28 | 8540 ABA | 8540 | |
| CH | Toshiba | TMM2464P 1001 | PROM 8 KB | DIP-28 | 8540 ADA | 8540 |
