Release Info
| Catalog ID | NAM-MC-3900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 16, 1986 |
| Publisher | Namco |
| Developer | Now Production |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

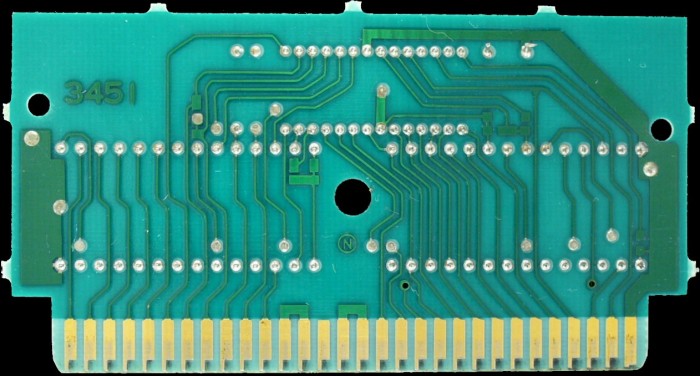

PCB Properties
| Name | 3451 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8645 - 8647 (3) |
| Est First Run | November 1986 |
| PCB Class | NAMCOT-3451 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 118 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT-MC-PRG | 32 KB | BDABC4A6 | 3 |
| CHR0 | NAMCOT-MC-CHR | 32 KB | E94CEEEE | 3 |
| N/A | ROMs Combined | 64 KB | E40B4973 | 3 |

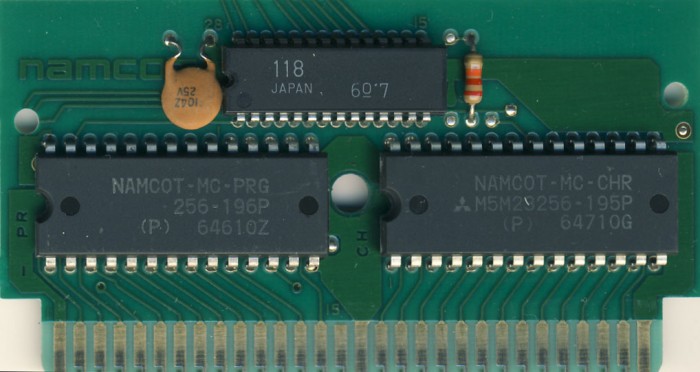

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | 256 M5M23 | Mask ROM 32 KB | DIP-28 | 646 10Z | 8646 | (P) |
| CH | Mitsubishi | M5M23256 195P | Mask ROM 32 KB | DIP-28 | 647 10G | 8647 | (P) |
| Panasonic | 118 | Namcot 118 | DIP-28 | 6 | 8644 |
