Release Info
| Catalog ID | KOE-NU |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 3, 1990 |
| Publisher | Koei |
| Developer | Koei |
| Players | 1 |
| Peripherals | Famicom Controller |

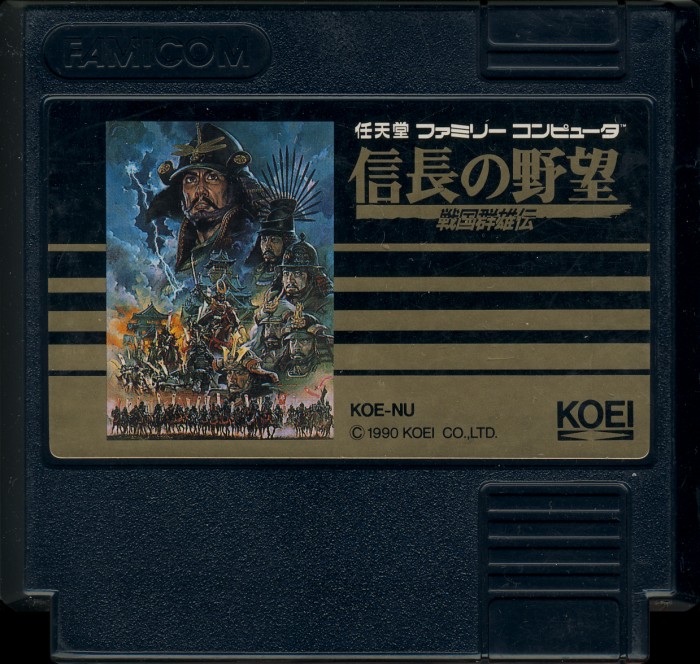

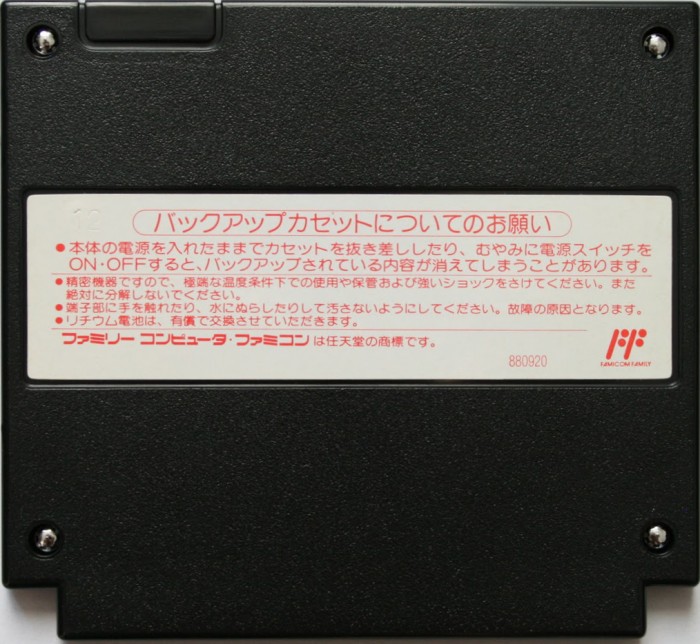

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | KOE-NU |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

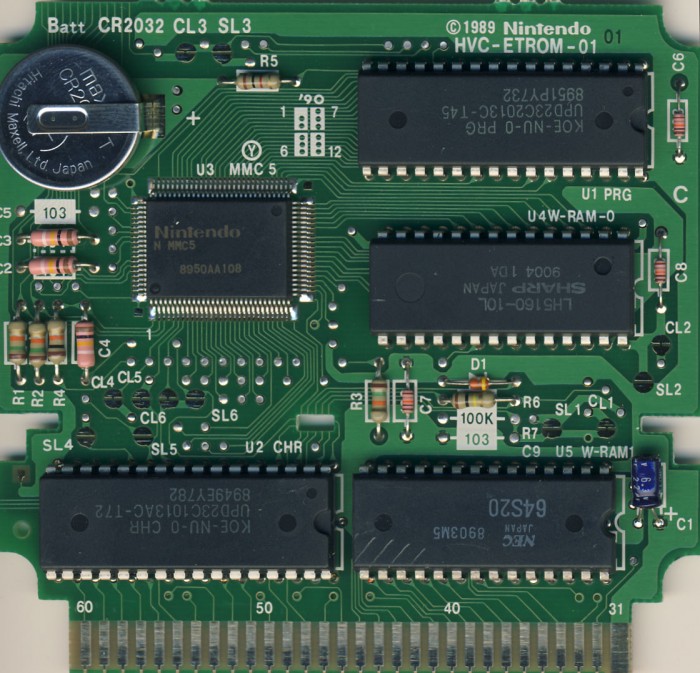

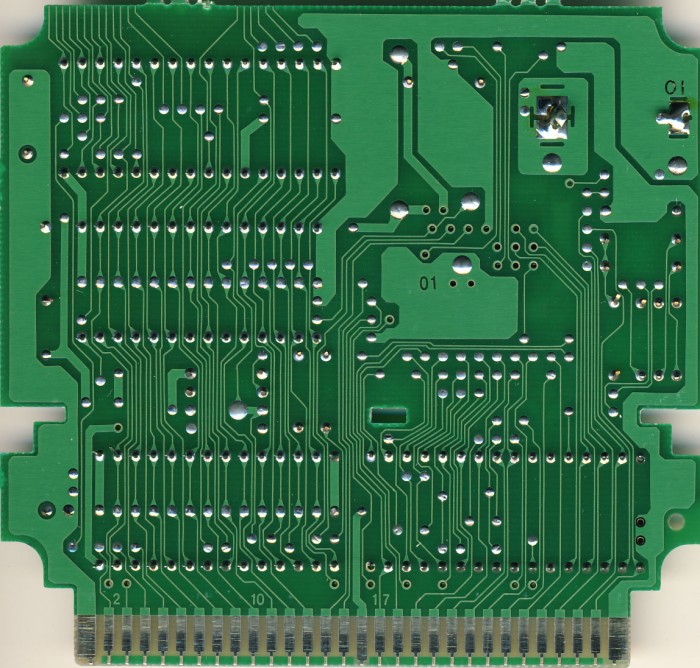

PCB Properties
| Name | HVC-ETROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9004 |
| Est First Run | January 1990 |
| PCB Class | HVC-ETROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 16 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KOE-NU-0 PRG | 256 KB | 98C8E090 | 1 |
| CHR0 | KOE-NU-0 CHR | 128 KB | 5CC0DBF5 | 1 |
| N/A | ROMs Combined | 384 KB | EEE9A682 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T45 | Mask ROM 256 KB | DIP-32 | 8951 PY732 | 8951 | |
| U2 CHR | NEC | UPD23C1013AC T72 | Mask ROM 128 KB | DIP-32 | 8949 EY782 | 8949 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 8950 AA108 | 8950 | |
| U4 W-RAM-0 | Sharp | LH5160-10L | SRAM 8 KB | DIP-28 | 9004 1 DA | 9004 | |
| U5 W-RAM-1 | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8903 M5 | 8903 |
