Release Info
| Catalog ID | HVC-YT |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 28, 1991 |
| Publisher | Nintendo |
| Developer | Chatnoir |
| Players | 1 |
| Peripherals | Famicom Controller |

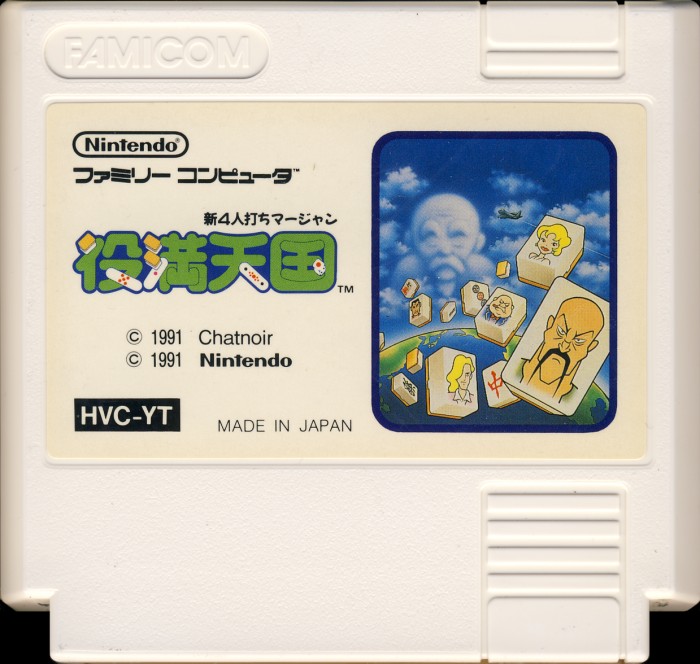

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | HVC-YT |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

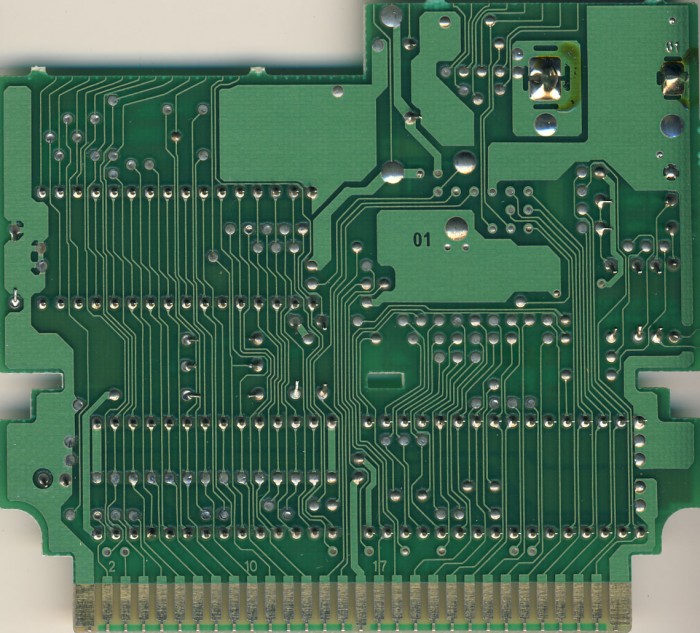

PCB Properties
| Name | HVC-EKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9123 - 9123 (2) |
| Est First Run | June 1991 |
| PCB Class | HVC-EKROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-YT-0 PRG | 256 KB | E91548D8 | 2 |
| CHR0 | HVC-YT-0 CHR | 128 KB | 2CE16272 | 2 |
| N/A | ROMs Combined | 384 KB | D532E98F | 2 |

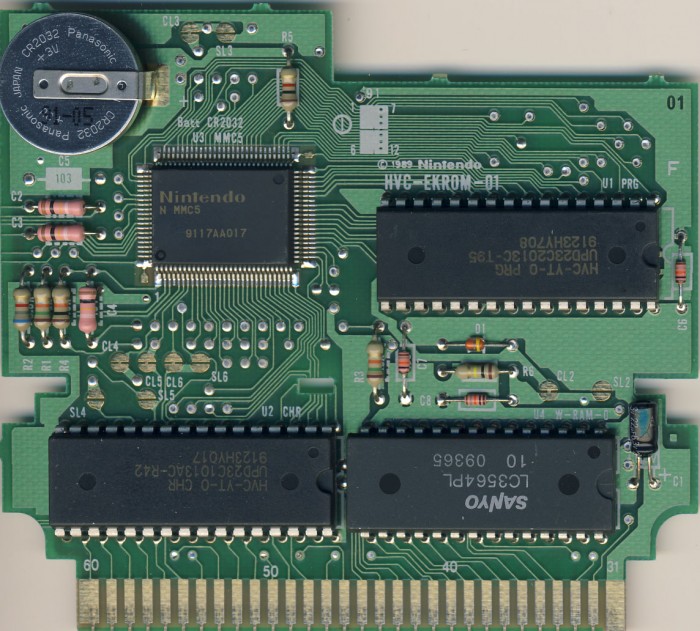

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T95 | Mask ROM 256 KB | DIP-32 | 9123 HY708 | 9123 | |
| U2 CHR | NEC | UPD23C1013AC R42 | Mask ROM 128 KB | DIP-32 | 9123 HY017 | 9123 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9117 AA017 | 9117 | |
| U4 W-RAM-0 | Sanyo | LC3564PL-10 | SRAM 8 KB | DIP-28 | 09 365 | 9035 |
