Release Info
| Catalog ID | TFC-EA-4900-04 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 28, 1985 |
| Publisher | Taito |
| Developer | Taito |
| Players | 2 |
| Peripherals | Famicom Controller |

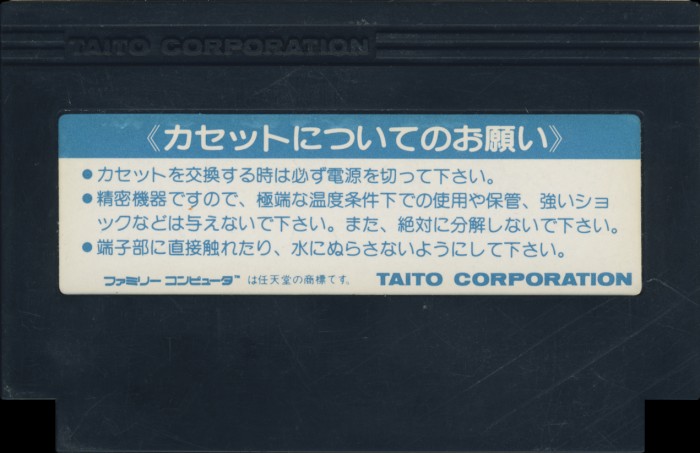

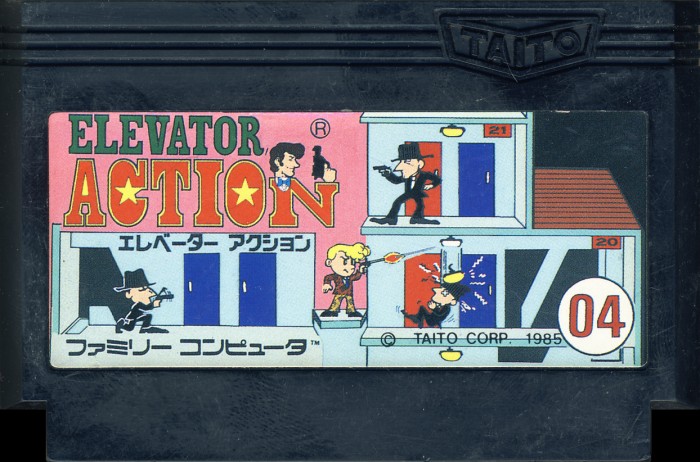

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Short Label / Logo 1 / 3 Screws |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

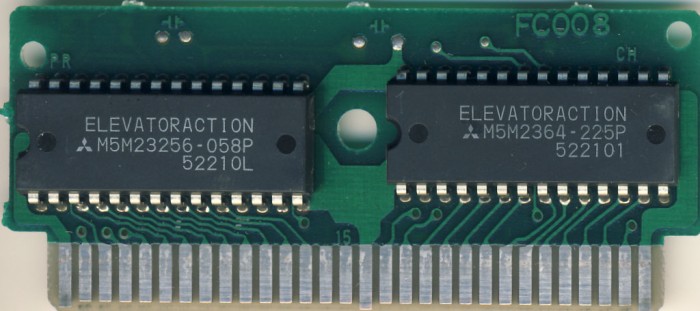

PCB Properties
| Name | FC008 |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8522 |
| Est First Run | June 1985 |
| PCB Class | TAITO-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ELEVATORACTION | 32 KB | A6DE7024 | 1 |
| CHR0 | ELEVATORACTION | 8 KB | FAC01D0F | 1 |
| N/A | ROMs Combined | 40 KB | FCDACA80 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | M5M23256 058P | Mask ROM 32 KB | DIP-28 | 522 10L | 8522 | |
| CH | Mitsubishi | M5M2364 225P | Mask ROM 8 KB | DIP-28 | 522 101 | 8522 |
