Release Info
| Catalog ID | TFC-GD-4900-06 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 13, 1986 |
| Publisher | Taito |
| Developer | Crux |
| Players | 1 |
| Peripherals | Famicom Controller |

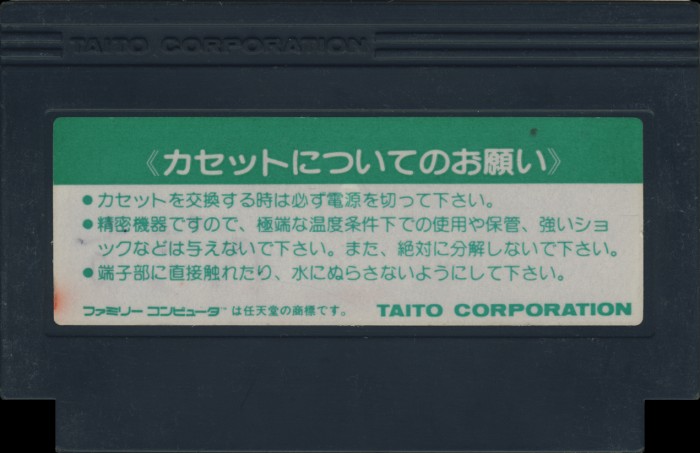

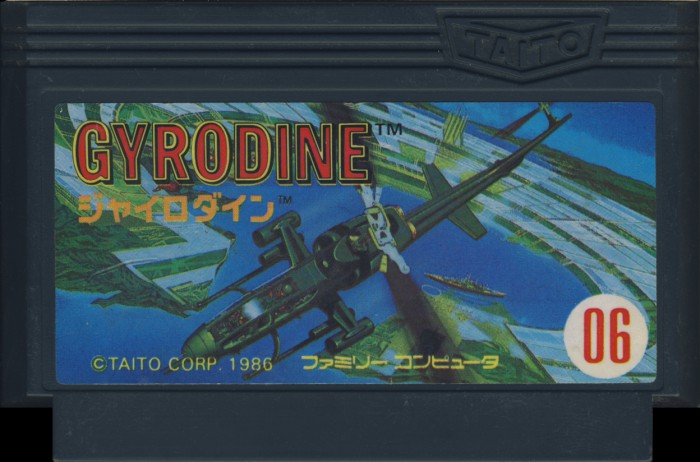

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Tall Label / Logo 1 / No Battery Door |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

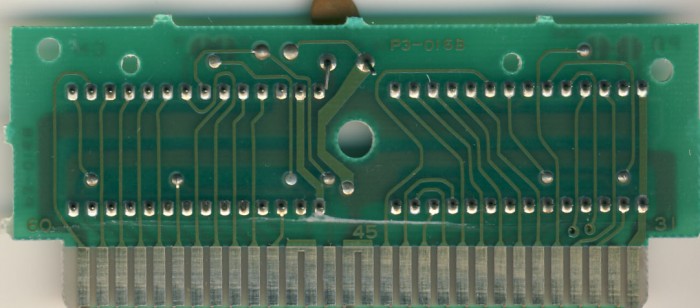

PCB Properties
| Name | P3-016B |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8606 - 8608 (2) |
| Est First Run | February 1986 |
| PCB Class | TAITO-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | X3-005 P | 32 KB | 23E6D471 | 2 |
| CHR0 | X3-006 CCC | 8 KB | 4329BB4D | 2 |
| N/A | ROMs Combined | 40 KB | 29E173FF | 2 |

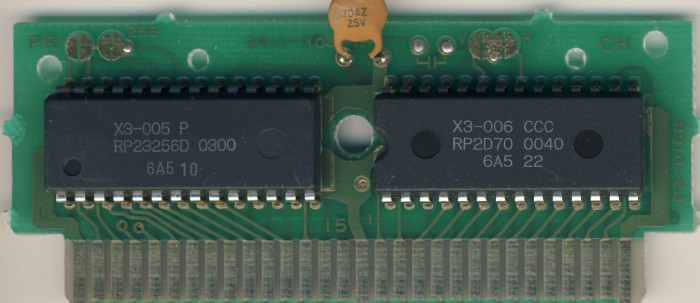

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Ricoh | RP23256D 0300 | Mask ROM 32 KB | DIP-28 | 6A5 10 | 8606 | |
| CH | Ricoh | RP2D70 0040 | Mask ROM 8 KB | DIP-28 | 6A5 22 | 8606 |
