Release Info
| Catalog ID | TFC-BJIII-6400-40 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 20, 1991 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | Famicom Controller |

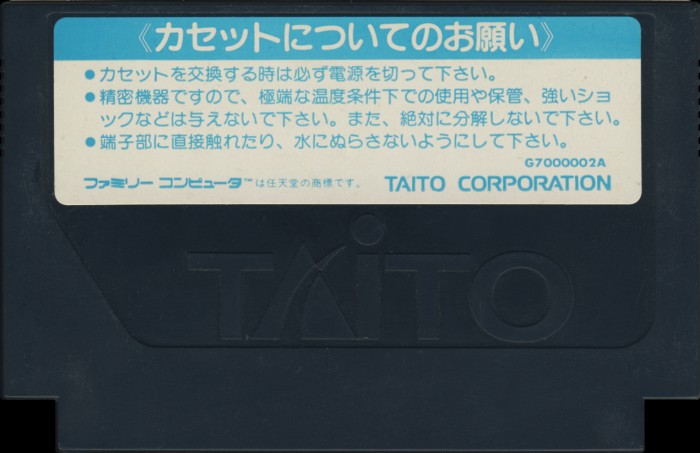

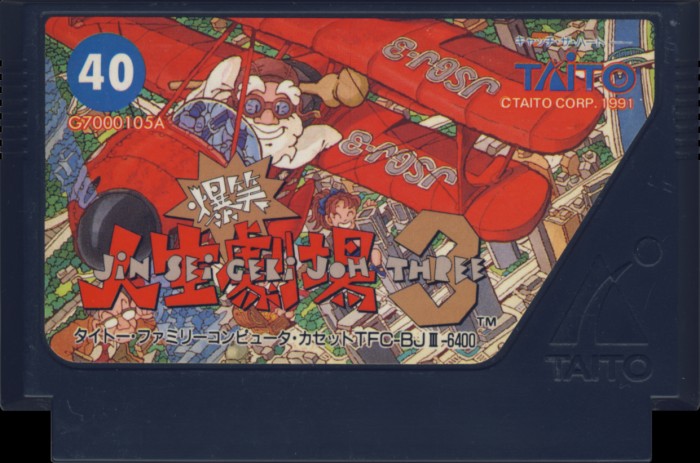

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | TFC-BJIII-6400 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

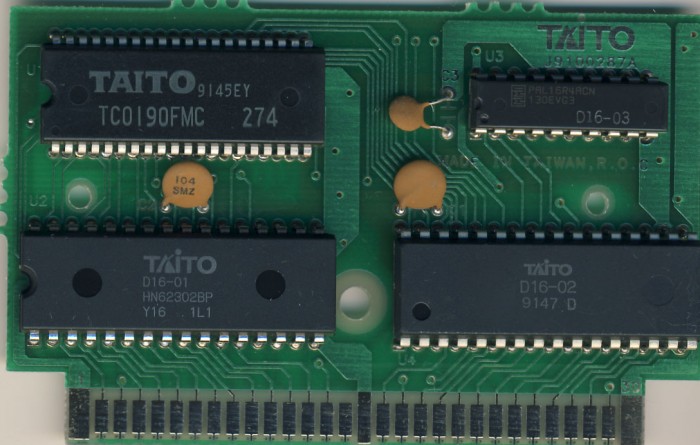

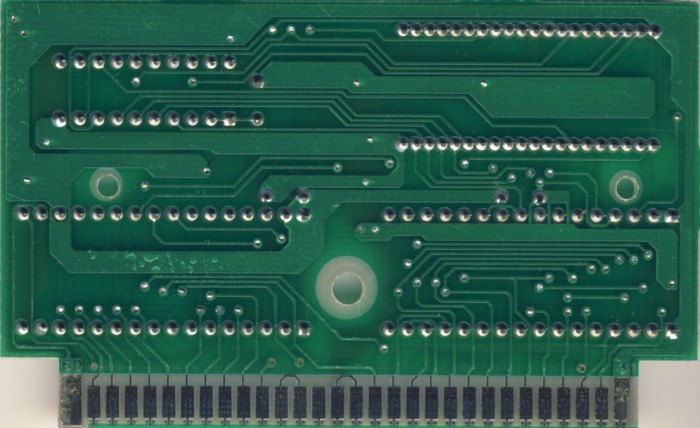

PCB Properties
| Name | J9100287A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 9145 - 9147 (4) |
| Est First Run | November 1991 |
| PCB Class | TAITO-TC0190FMC+PAL16R4 |
| iNES Mapper | 48 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | PAL16R4, TC0190FMC |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | D16-01 | 256 KB | 1394E1A2 | 4 |
| CHR0 | D16-02 | 256 KB | A3B0FFCF | 4 |
| N/A | ROMs Combined | 512 KB | AEBD6549 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | NEC | TC0190FMC 274 | Taito TC0190FMC | DIP-40 | 9145 EY | 9145 | |
| U2 | Hitachi | HN62302BP Y16 | Mask ROM 256 KB | DIP-32 | 1L1 | 9145 | |
| U3 | Monolithic Memories | PAL16R4ACN | PAL16 | DIP-20 | 130 EVG3 | 9130 | D16-03 |
| U4 | Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9147 D | 9147 |
