Release Info
| Catalog ID | TFC-KD-4900-07 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 18, 1986 |
| Publisher | Taito |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

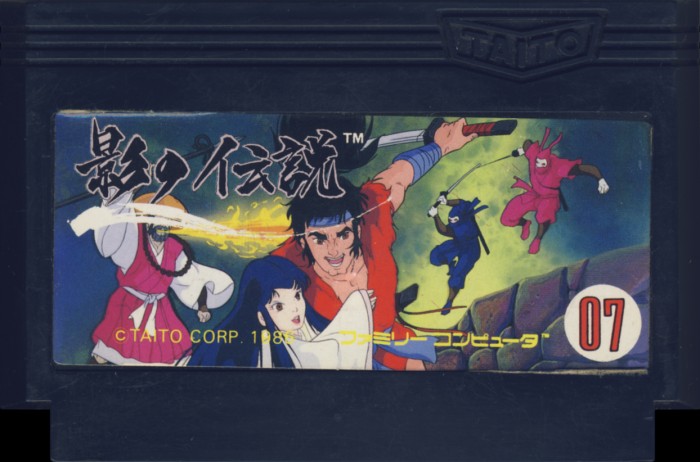

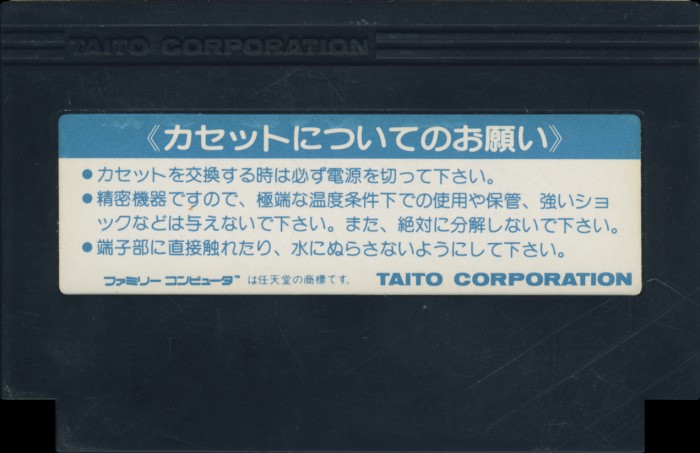

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Short Label / Logo 1 / 3 Screws |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

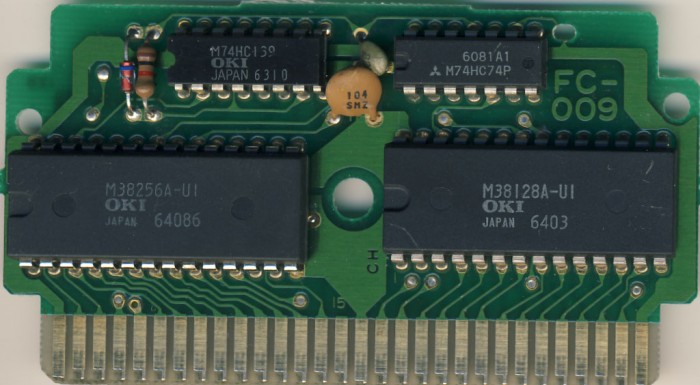

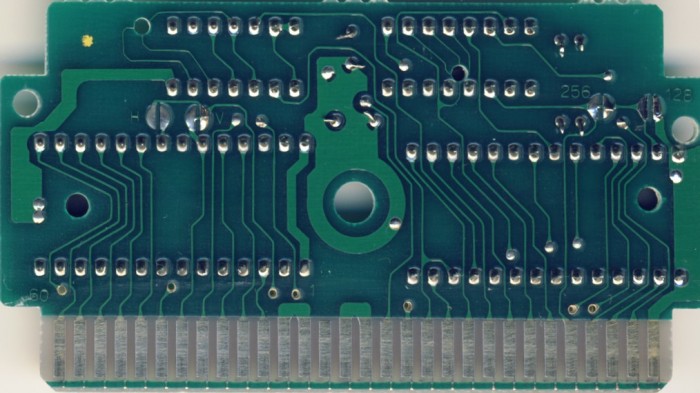

PCB Properties
| Name | FC-009 |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8608 - 8614 (6) |
| Est First Run | February 1986 |
| PCB Class | TAITO-74*139/74 |
| iNES Mapper | 87 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 391C4261 | 5 |
| CHR0 | Not Present | 16 KB | 0489AABC | 5 |
| N/A | ROMs Combined | 48 KB | BDA7925E | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | OKI | M38256A U1 | Mask ROM 32 KB | DIP-28 | 64 086 | 8614 | |
| CH | OKI | M38128A U1 | Mask ROM 16 KB | DIP-28 | 64 03 | 8614 | |
| OKI | M74HC139 | 74-139 Series | DIP-16 | 63 10 | 8609 | ||
| Mitsubishi | M74HC74P | 74-74 Series | DIP-14 | 608 1A1 | 8608 |
