Release Info
| Catalog ID | TFC-SD-4500-05 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 14, 1985 |
| Publisher | Taito |
| Developer | Taito |
| Players | 2 |
| Peripherals | Famicom Controller |

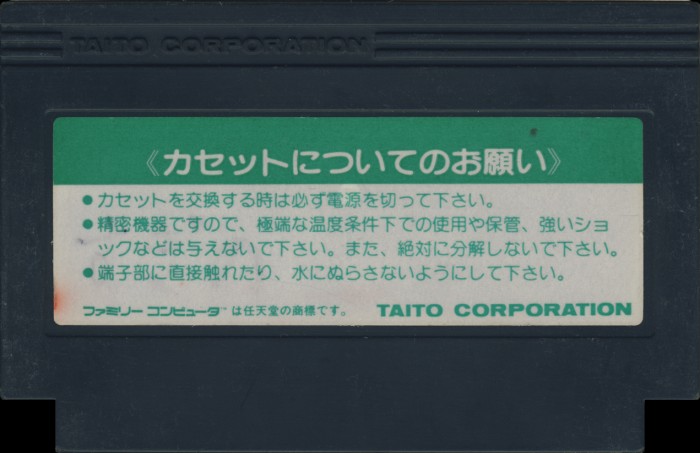

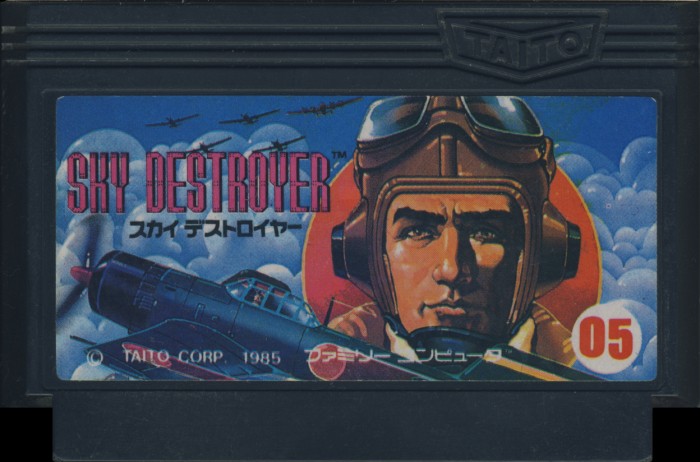

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Tall Label / Logo 1 / No Battery Door |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

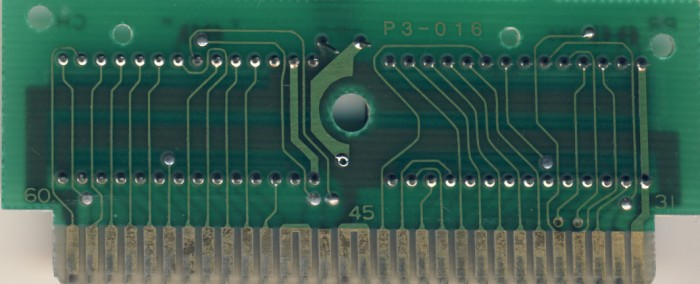

PCB Properties
| Name | P3-016 |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8530 - 8543 (4) |
| Est First Run | July 1985 |
| PCB Class | TAITO-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | X3-003 | 16 KB | 219CE59D | 3 |
| CHR0 | X3-004 | 8 KB | 86E2067A | 3 |
| N/A | ROMs Combined | 24 KB | E47E9FA7 | 3 |

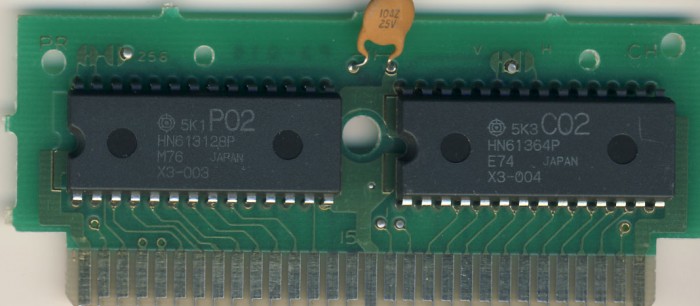

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Hitachi | HN613128P M76 | Mask ROM 16 KB | DIP-28 | 5K1 | 8541 | P02 |
| CH | Hitachi | HN61364P E74 | Mask ROM 8 KB | DIP-28 | 5K3 | 8543 | C02 |
