Release Info
| Catalog ID | SUN-BAT-6200 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 22, 1989 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | Famicom Controller |

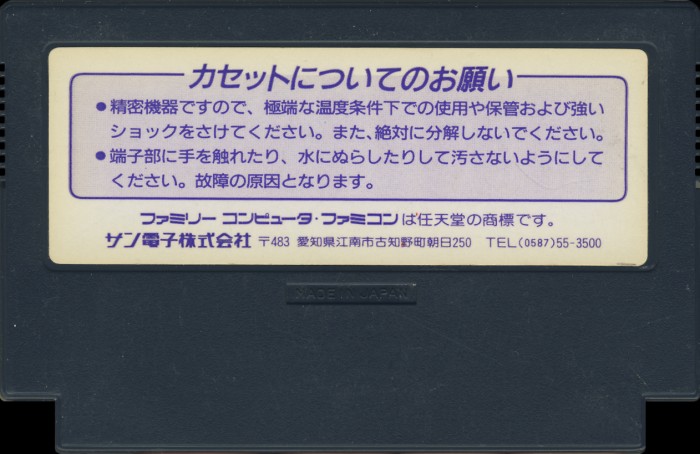

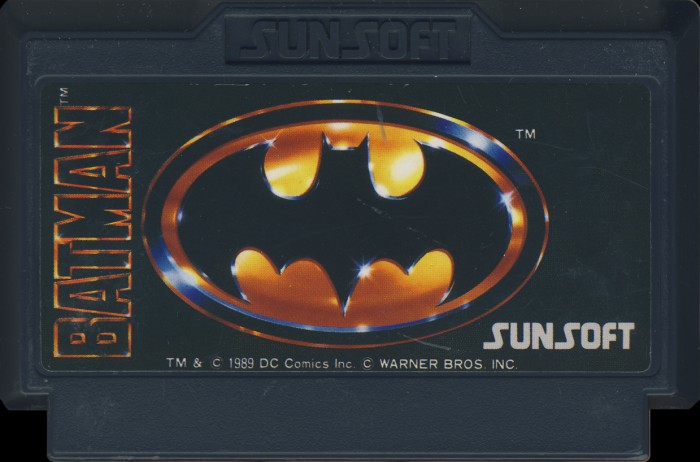

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

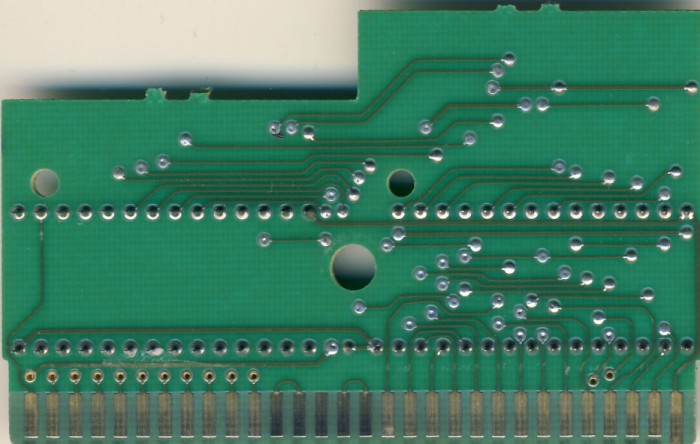

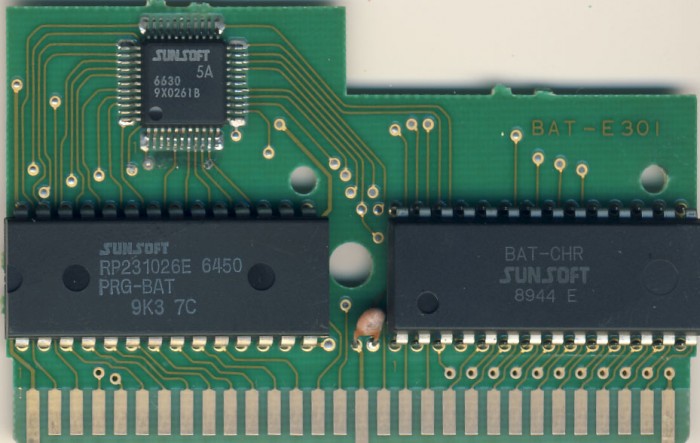

PCB Properties
| Name | BAT-E301 |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 8944 - 8944 (2) |
| Est First Run | November 1989 |
| PCB Class | SUNSOFT-5A |
| iNES Mapper | 69 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | Sunsoft-5A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PRG-BAT | 128 KB | 094AFAB5 | 2 |
| CHR0 | BAT-CHR | 128 KB | F3B41C18 | 11 |
| N/A | ROMs Combined | 256 KB | 4D7859A9 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Ricoh | RP231026E 6450 | Mask ROM 128 KB | DIP-28 | 9K3 7C | 8942 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8944 E | 8944 | ||
| _UnkAMS | SUNSOFT-5A | Sunsoft-5 | TQFP-44 | 9X 0261B | 8939 | 6630 |
