Release Info
| Catalog ID | IF-02 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 30, 1985 |
| Publisher | Irem |
| Developer | Irem |
| Players | 2 |
| Peripherals | Famicom Controller |

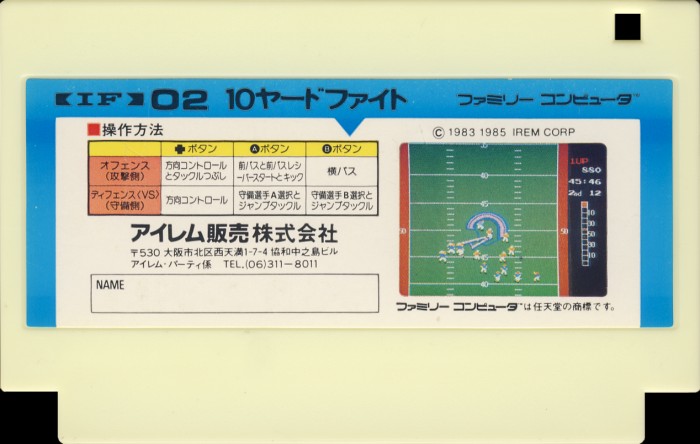

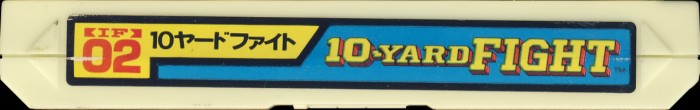

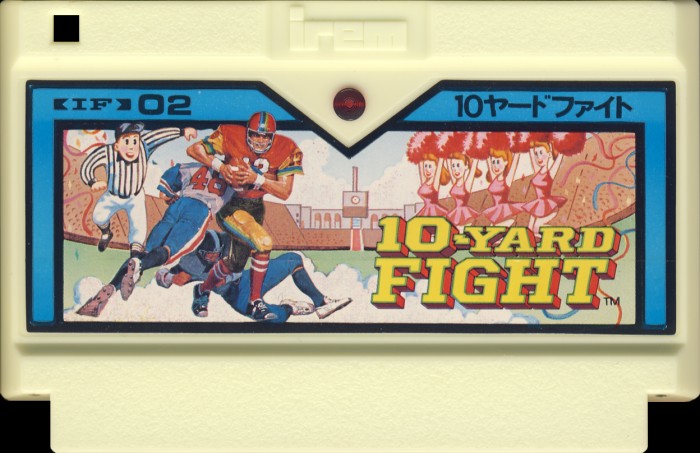

Cart Properties
| Cart Producer | Irem |
|---|---|
| Color | Off White |
| Form Factor | Original w/ LED |
| Embossed Text | |
| Front Label ID | IF-02 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

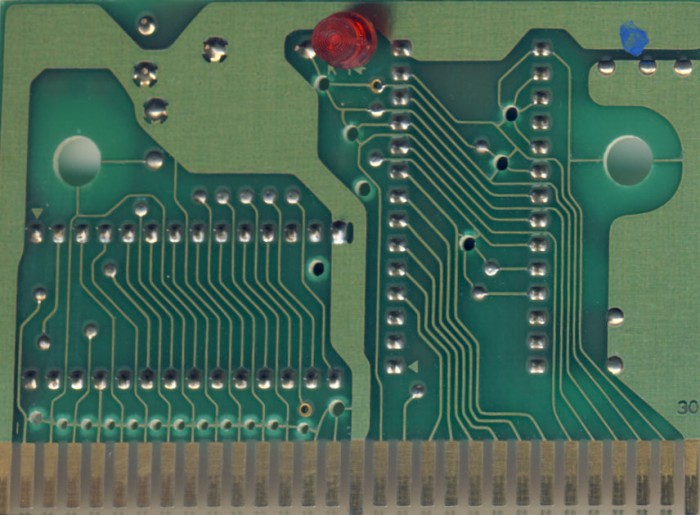

PCB Properties
| Name | IREM-01-V |
|---|---|
| PCB Producer | Irem |
| Manufacturer | Not Specified |
| Mfg Range | 8517 - 8528 (3) |
| Est First Run | April 1985 |
| PCB Class | IREM-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | B7E8DECA | 1 |
| CHR0 | Not Present | 8 KB | 9C124A53 | 3 |
| N/A | ROMs Combined | 24 KB | 44D21F83 | 1 |

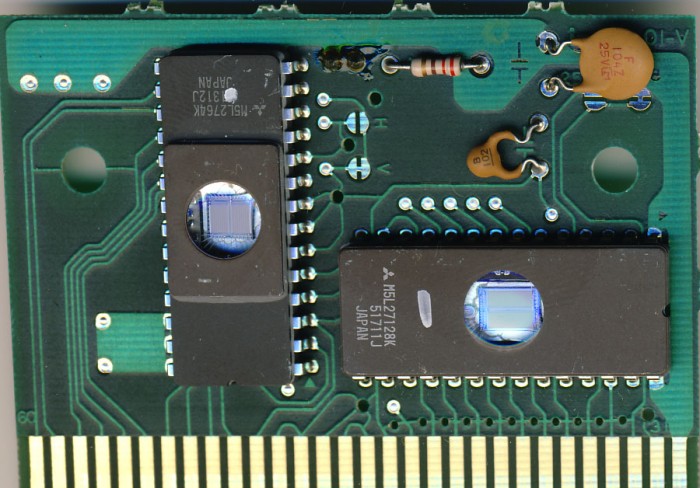

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Mitsubishi | M5L27128K | UV EPROM 16 KB | DIP-28 | 517 11J | 8517 | ||
| Mitsubishi | M5L2764K | UV EPROM 8 KB | DIP-28 | 513 12J | 8513 |
