Release Info
| Catalog ID | IF-01 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 18, 1985 |
| Publisher | Irem |
| Developer | Irem |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Irem |
|---|---|
| Color | Off White |
| Form Factor | Original w/ LED |
| Embossed Text | |
| Front Label ID | IF-01 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

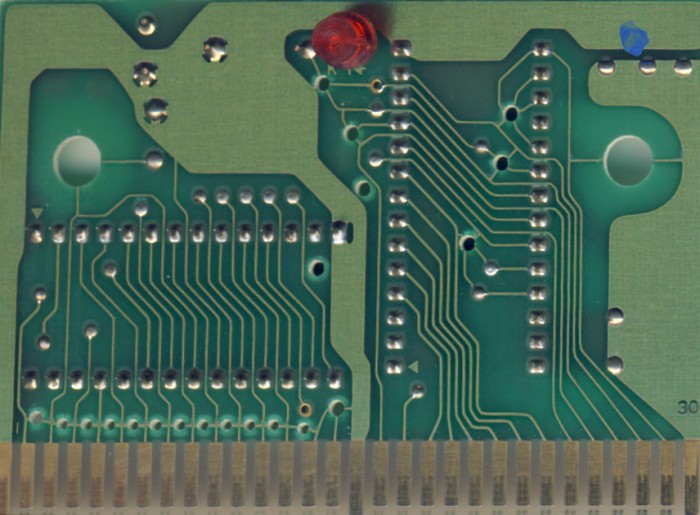

PCB Properties
| Name | IREM-01-V |
|---|---|
| PCB Producer | Irem |
| Manufacturer | Not Specified |
| Mfg Range | 8517 - 8936 (4) |
| Est First Run | April 1985 |
| PCB Class | IREM-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | IREM ZR-128 | 16 KB | E16BB5FE | 4 |
| CHR0 | IREM ZR-64 | 8 KB | 45ABD80E | 4 |
| N/A | ROMs Combined | 24 KB | E492D45A | 4 |

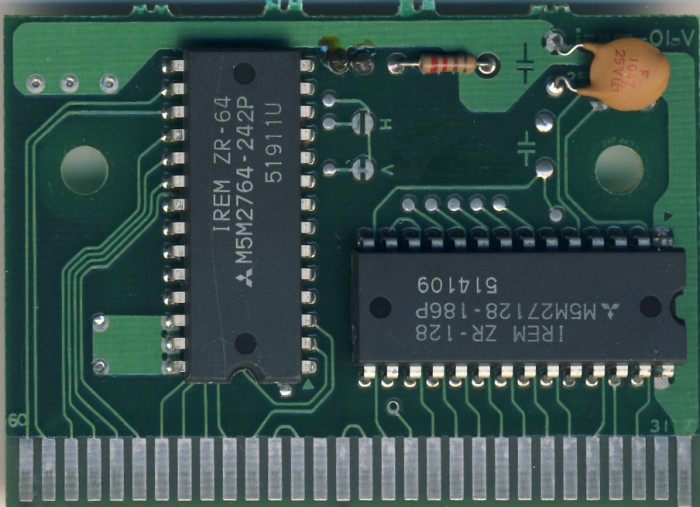

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Mitsubishi | M5M27128 186P | PROM 16 KB | DIP-28 | 514 109 | 8514 | ||
| Mitsubishi | M5M2764 242P | PROM 8 KB | DIP-28 | 519 11U | 8519 |
