Release Info
| Catalog ID | BA-DAI3 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 8, 1989 |
| Publisher | Bandai |
| Developer | Human Entertainment |
| Players | 2 |
| Peripherals | Famicom Controller |

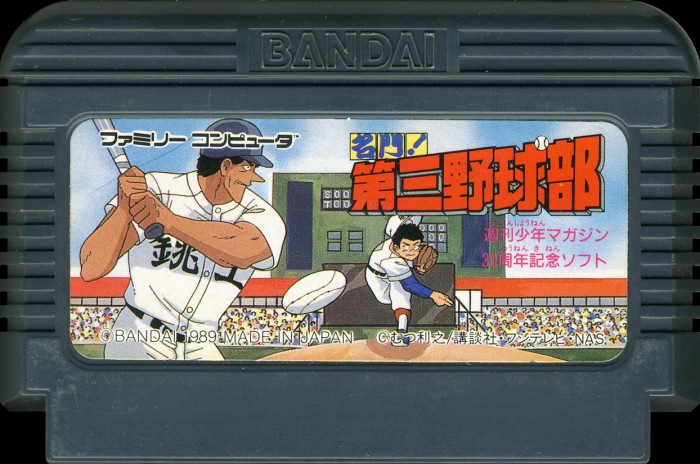

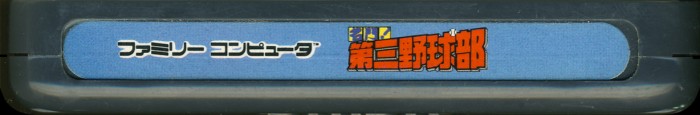

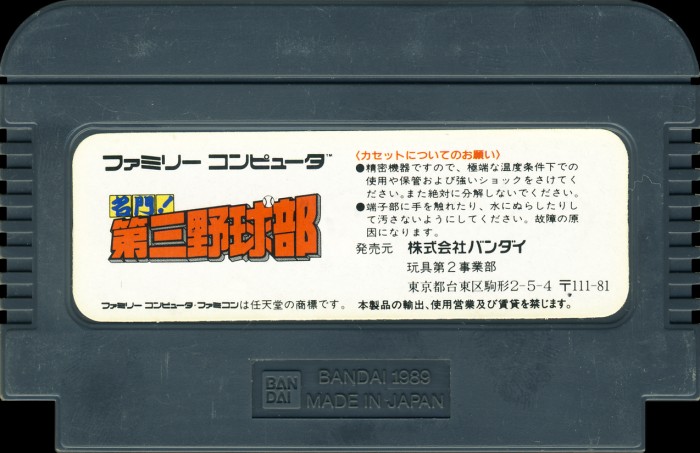

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

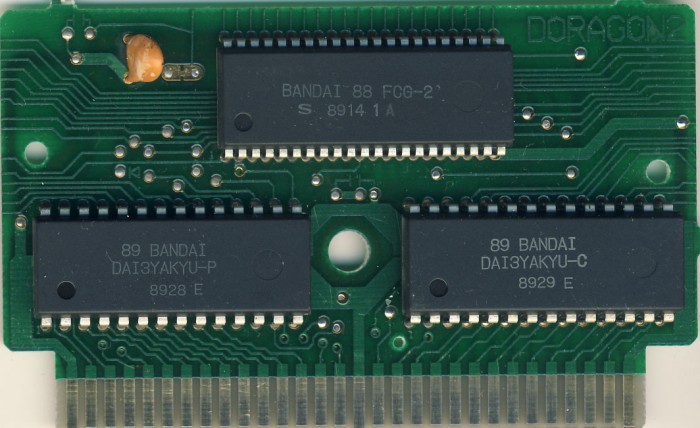

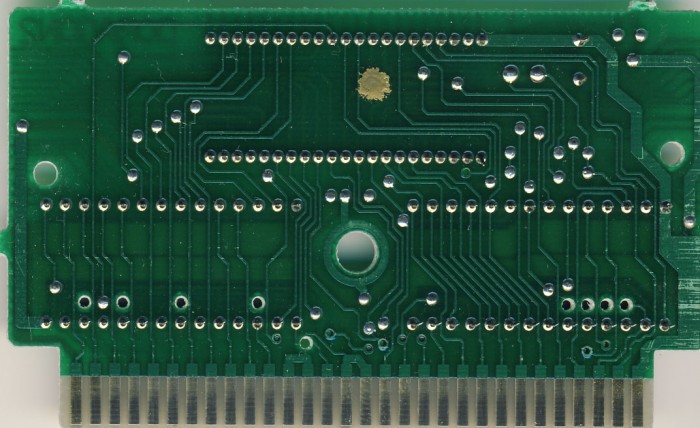

PCB Properties
| Name | DORAGON2 |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8929 |
| Est First Run | July 1989 |
| PCB Class | BANDAI-FCG-1 |
| iNES Mapper | 16 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | FCG-2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 89 BANDAI DAI3YAKYU-P | 128 KB | F1A03778 | 1 |
| CHR0 | 89 BANDAI DAI3YAKYU-C | 128 KB | 1B750D8F | 1 |
| N/A | ROMs Combined | 256 KB | 7B5206AF | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8928 E | 8928 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8929 E | 8929 | ||
| Sharp | FCG-2 | Bandai FCG-2 | DIP-42 | 8914 1 A | 8914 |
