Release Info
| Catalog ID | BA-FJ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 15, 1989 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

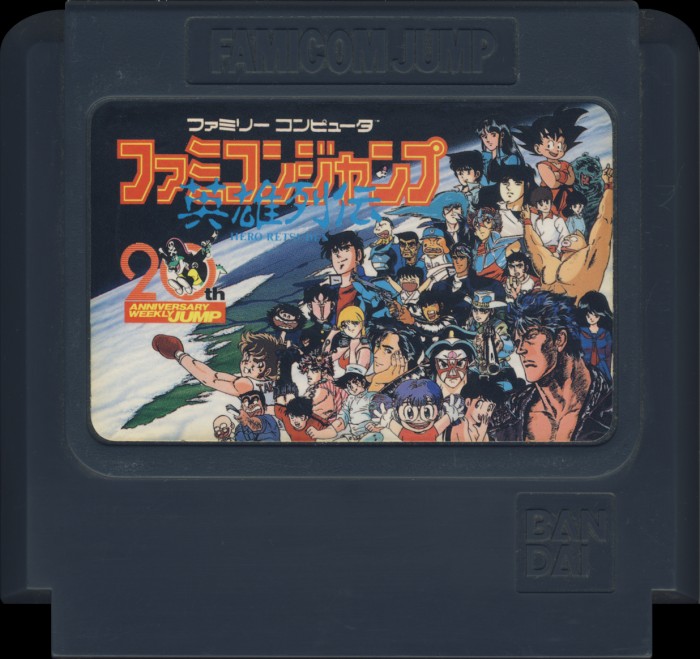

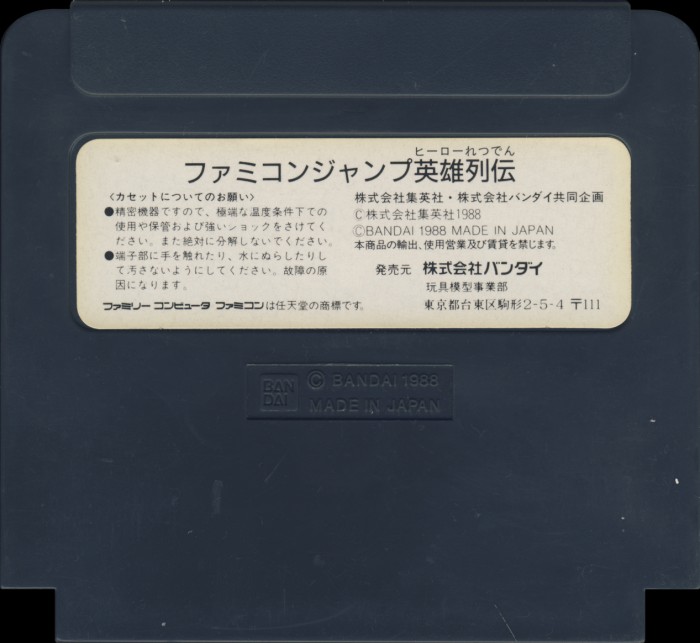

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | © Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

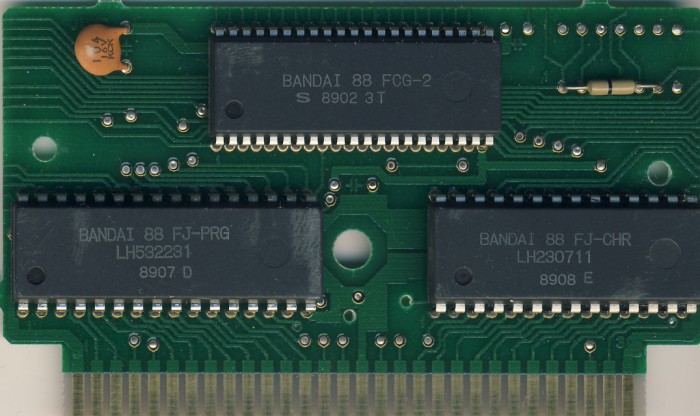

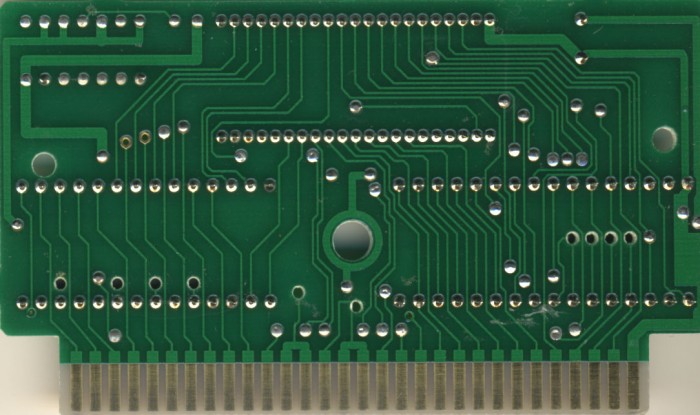

PCB Properties
| Name | JUMP |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8906 - 8916 (7) |
| Est First Run | February 1989 |
| PCB Class | BANDAI-FCG-2 |
| iNES Mapper | 16 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | FCG-2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 88 FJ-PRG | 256 KB | 2CBA26AC | 5 |
| CHR0 | BANDAI 88 FJ-CHR | 128 KB | DB36205E | 7 |
| N/A | ROMs Combined | 384 KB | D343C66A | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH5322 31 | Mask ROM 256 KB | DIP-32 | 8907 D | 8907 | ||
| Sharp | LH2307 11 | Mask ROM 128 KB | DIP-28 | 8908 E | 8908 | ||
| Sharp | FCG-2 | Bandai FCG-2 | DIP-42 | 8902 3 T | 8902 |
