Release Info
| Catalog ID | BA-KAMEN |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 3, 1988 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

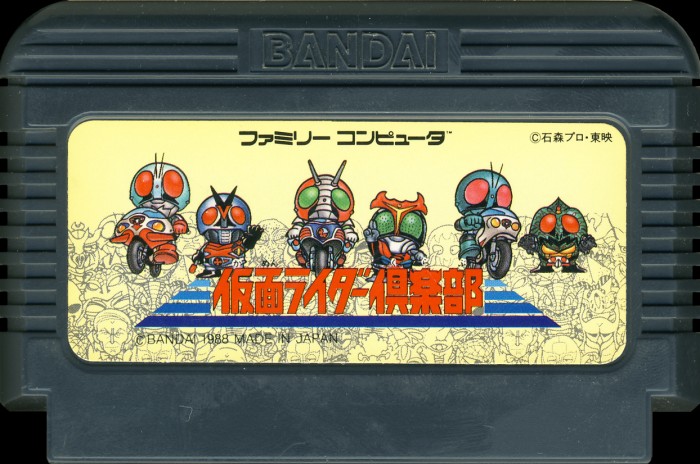

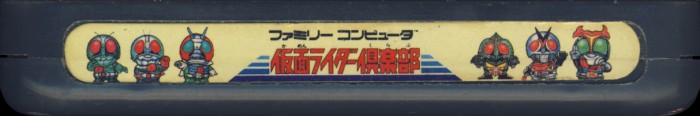

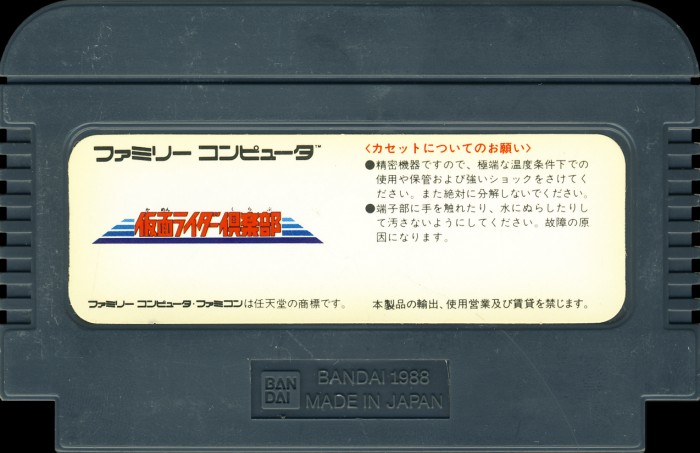

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

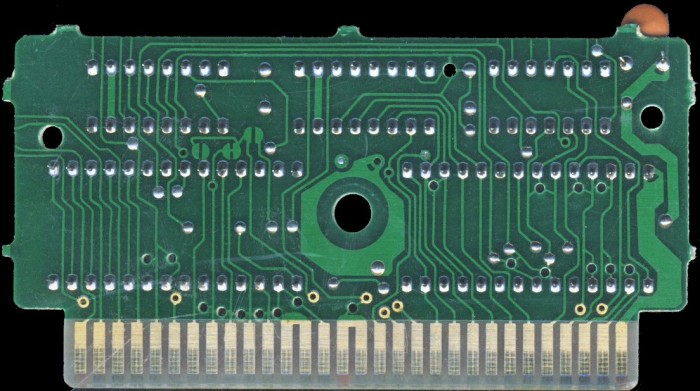

PCB Properties
| Name | BA カメン |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8803 - 8804 (5) |
| Est First Run | January 1988 |
| PCB Class | BANDAI-74*161/161/32 |
| iNES Mapper | 70 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 88 KAMEN P | 128 KB | A59CA2EF | 5 |
| CHR0 | BANDAI 88 KAMEN C | 128 KB | CC0FFD0E | 5 |
| N/A | ROMs Combined | 256 KB | DD8ED0F7 | 5 |

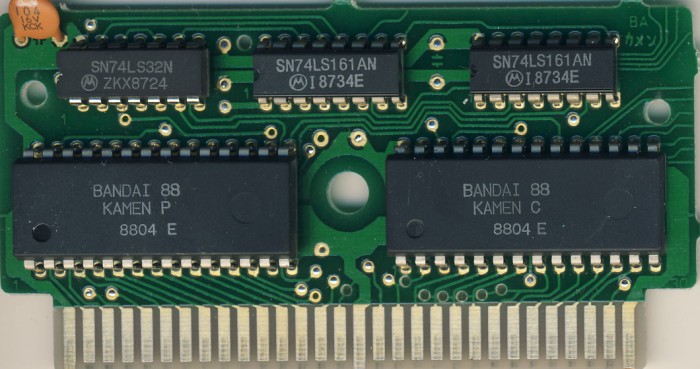

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8804 E | 8804 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8804 E | 8804 | ||
| Motorola | SN74LS32N | 74-32 Series | DIP-14 | 8724 ZKX | 8724 | ||
| Motorola | SN74LS161AN | 74-161 Series | DIP-16 | 8734 I | 8734 | ||
| Motorola | SN74LS161AN | 74-161 Series | DIP-16 | 8734 I | 8734 |
