Release Info
| Catalog ID | NES-EB-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 18, 1985 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

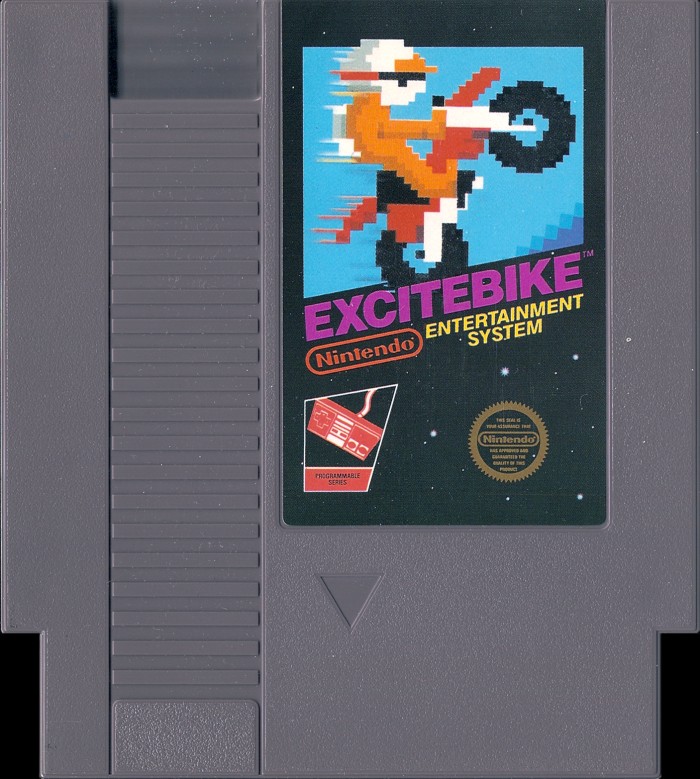

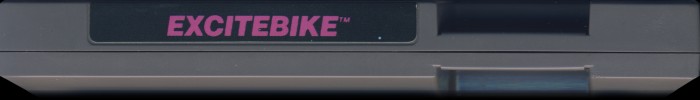

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code | 12 |

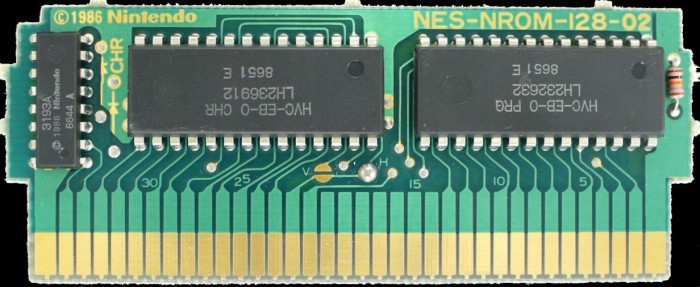

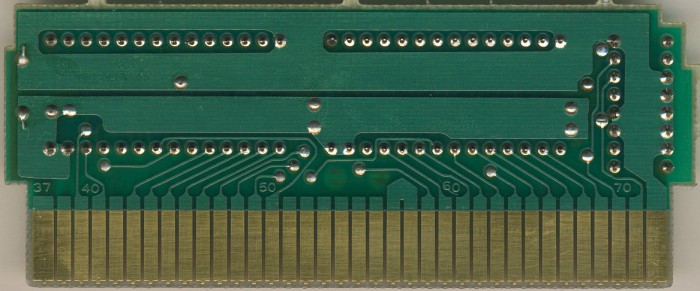

PCB Properties
| Name | NES-NROM-128-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8651 - 8909 (6) |
| Est First Run | December 1986 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-EB-0 PRG | 16 KB | 3A94FA0B | 14 |
| CHR0 | HVC-EB-0 CHR | 8 KB | E5F72401 | 21 |
| N/A | ROMs Combined | 24 KB | 49AEB3A6 | 14 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2326 32 | Mask ROM 16 KB | DIP-28 | 8651 E | 8651 | |
| CHR | Sharp | LH2369 12 | Mask ROM 8 KB | DIP-28 | 8651 E | 8651 | |
| CIC | Sharp | 3193A | Nintendo CIC | DIP-16 | 8644 A | 8644 |
