Release Info
| Catalog ID | BA-SEIYA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 10, 1987 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

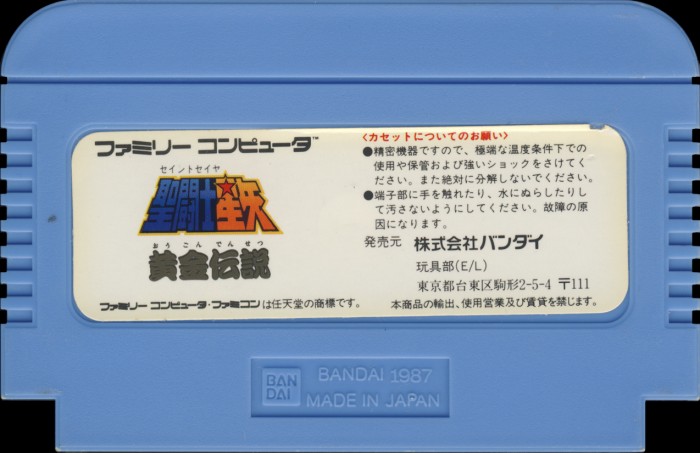

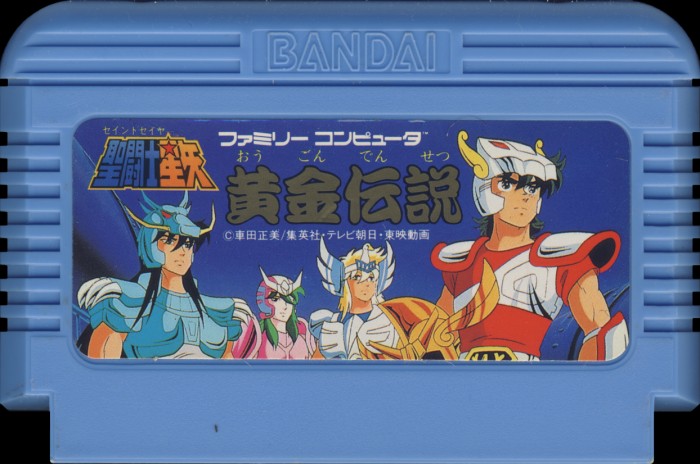

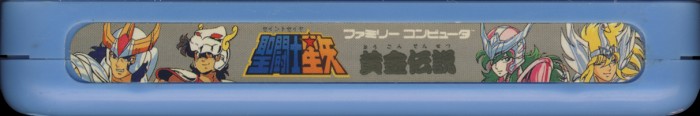

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Light Blue |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

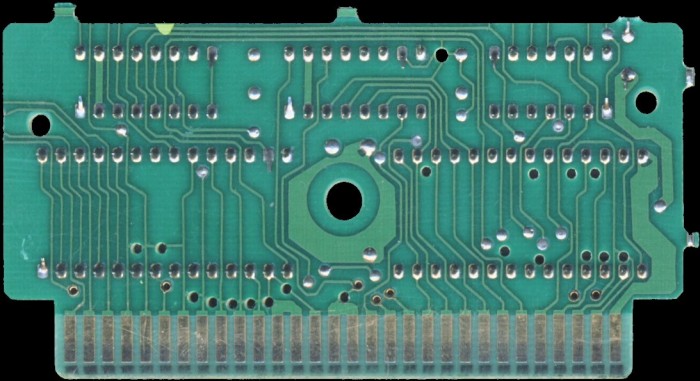

PCB Properties
| Name | BA ワラ |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8731 - 8738 (7) |
| Est First Run | August 1987 |
| PCB Class | BANDAI-74*161/161/32 |
| iNES Mapper | 152 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 87 SEIYA P | 128 KB | 3BF15767 | 7 |
| CHR0 | BANDAI 87 SEIYA C | 128 KB | E7C63C56 | 7 |
| N/A | ROMs Combined | 256 KB | 026C5FCA | 7 |

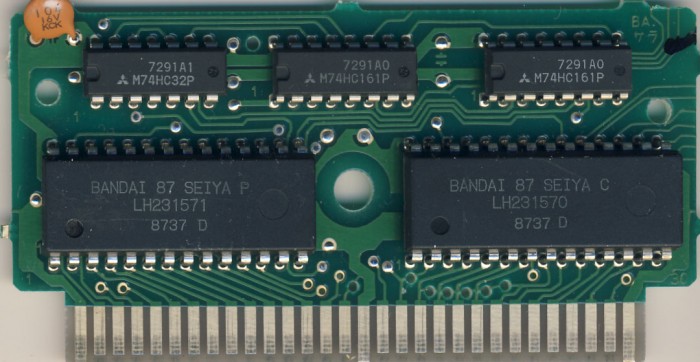

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2315 71 | Mask ROM 128 KB | DIP-28 | 8737 D | 8737 | ||
| Sharp | LH2315 70 | Mask ROM 128 KB | DIP-28 | 8737 D | 8737 | ||
| Mitsubishi | M74HC32P | 74-32 Series | DIP-14 | 729 1A1 | 8729 | ||
| Mitsubishi | M74HC161P | 74-161 Series | DIP-16 | 729 1A0 | 8729 | ||
| Mitsubishi | M74HC161P | 74-161 Series | DIP-16 | 729 1A0 | 8729 |
