Release Info
| Catalog ID | BA-ONI2 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 22, 1987 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

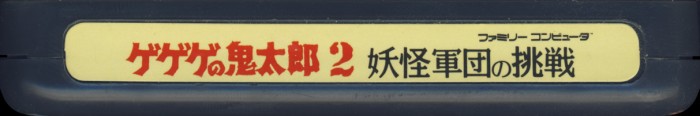

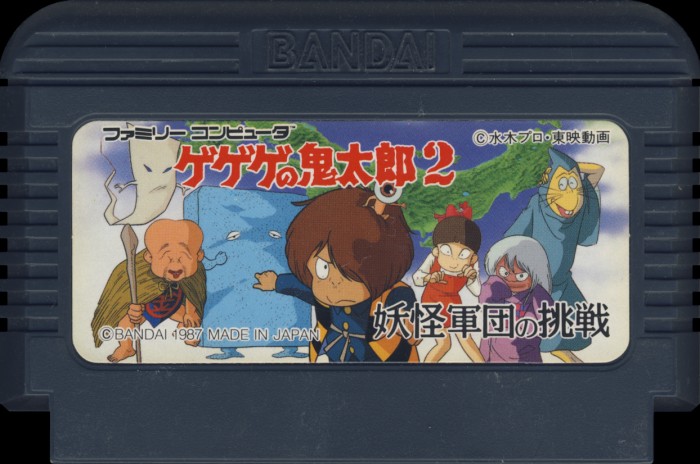

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

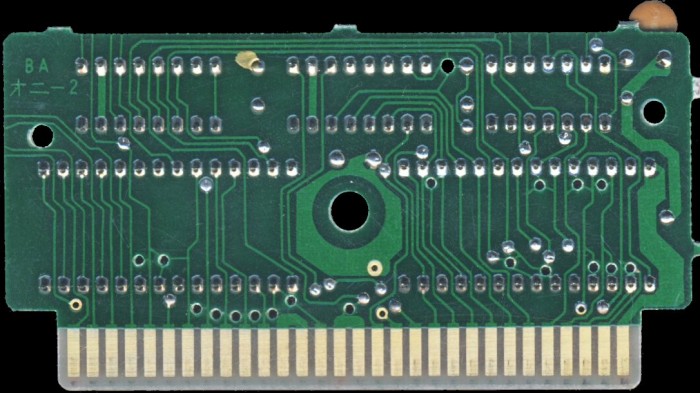

PCB Properties
| Name | BA オニ-2 |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8749 - 8752 (4) |
| Est First Run | December 1987 |
| PCB Class | BANDAI-74*161/161/32 |
| iNES Mapper | 152 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI KITAROP | 128 KB | 48F8D55E | 4 |
| CHR0 | Not Present | 128 KB | 9D5CB85A | 4 |
| N/A | ROMs Combined | 256 KB | BDA8F8E4 | 4 |

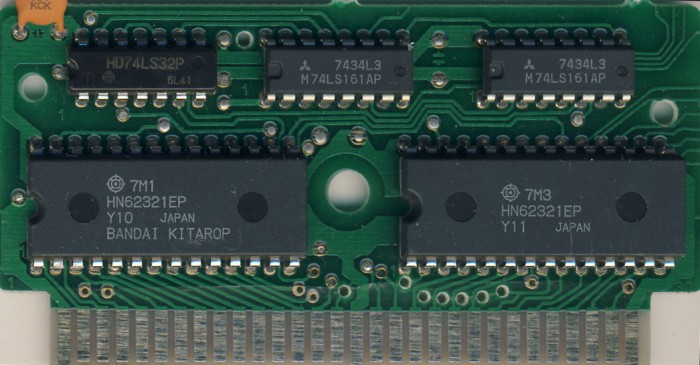

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Hitachi | HN62321EP Y10 | Mask ROM 128 KB | DIP-28 | 7M1 | 8750 | ||
| Hitachi | HN62321EP Y11 | Mask ROM 128 KB | DIP-28 | 7M3 | 8752 | ||
| Hitachi | HD74LS32P | 74-32 Series | DIP-14 | 6L4 1 | 8648 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 743 4L3 | 8743 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 743 4L3 | 8743 |
