Release Info
| Catalog ID | BA-KGD |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 11, 1990 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

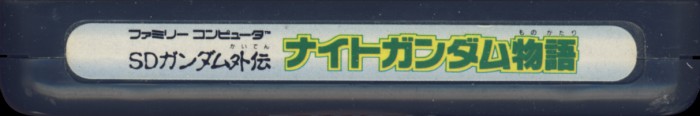

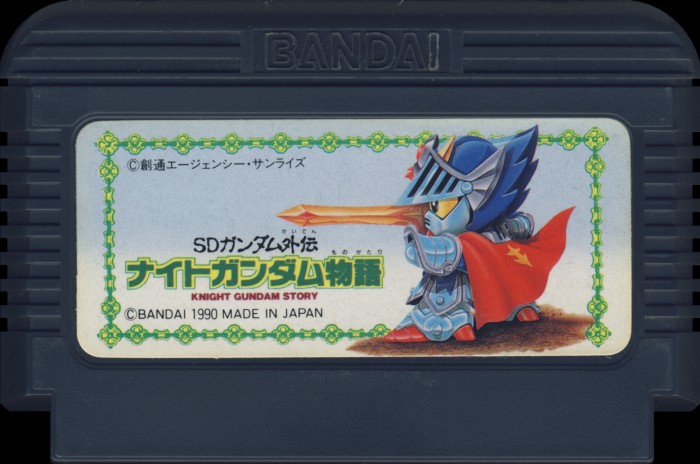

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

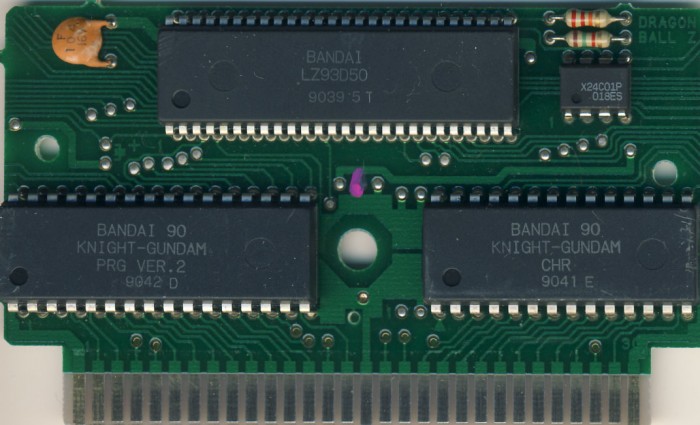

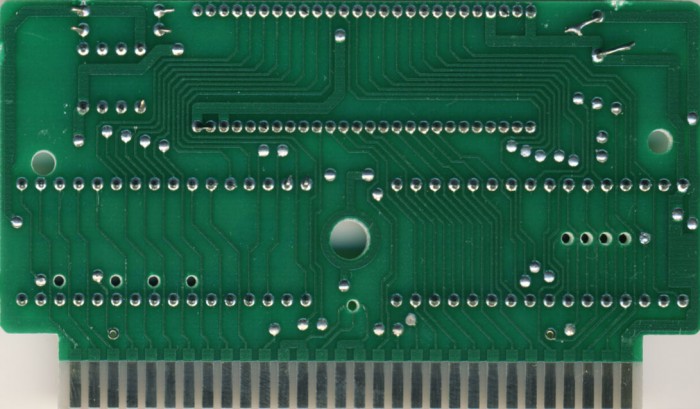

PCB Properties
| Name | DRAGON BALL Z |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 9026 - 9042 (7) |
| Est First Run | June 1990 |
| PCB Class | BANDAI-LZ93D50+24C01 |
| iNES Mapper | 159 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 24C01, FCG-3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 90 KNIGHT-GUNDAM PRG VER.2 | 256 KB | 95F24E53 | 2 |
| CHR0 | BANDAI 90 KNIGHT-GUNDAM CHR | 128 KB | 9E066029 | 7 |
| N/A | ROMs Combined | 384 KB | 276AC722 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9042 D | 9042 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9041 E | 9041 | ||
| Sharp | LZ93D50 | Bandai FCG-3 | DIP-52 | 9039 5 T | 9039 | ||
| Xicor | X24C01P | Serial EEPROM 1 kb | DIP-8 | 018 ES | 9018 |
