Release Info
| Catalog ID | NES-LF-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1988 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

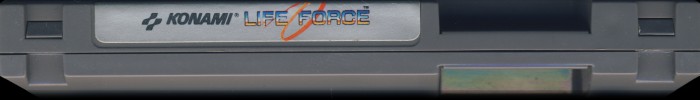

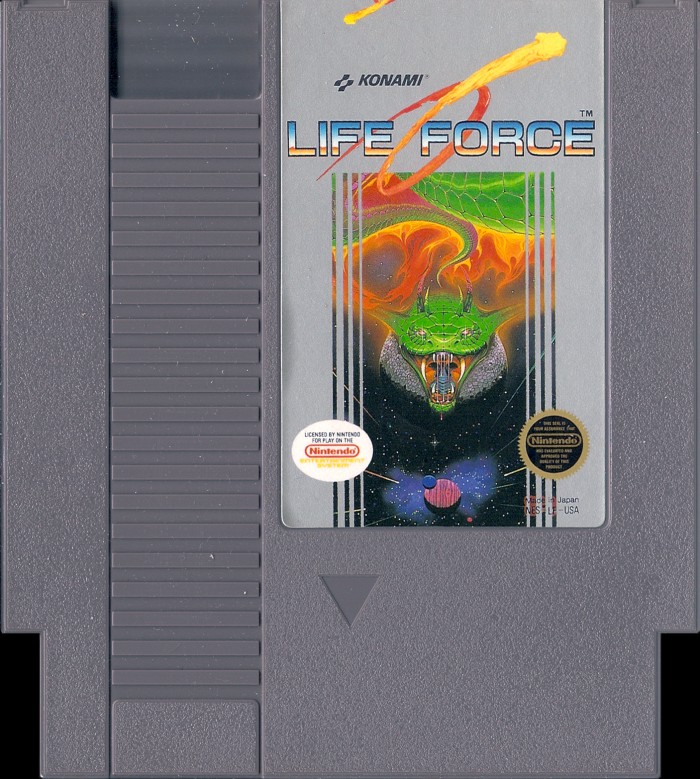

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LF-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 24 |
PCB Properties
| Name | 351258 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8826 - 8827 (2) |
| Est First Run | June 1988 |
| PCB Class | KONAMI-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RD011N0P | 128 KB | C4BC85A2 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Panasonic | MN231001 | Mask ROM 128 KB | DIP-28 | 8 53 | 8823 | ||
| Fujitsu | MB8464A-15L-SK | SRAM 8 KB | SDIP-28 | 8810 KR42 | 8810 | ||
| Sharp | 6113A | Nintendo CIC | DIP-16 | 8827 7 AA | 8827 | ||
| Phillips | 74HC161N | 74-161 Series | DIP-16 | 8821 KB | 8821 | QEJ8847 | |
| Phillips | 74HC32N | 74-32 Series | DIP-14 | 8821 KB | 8821 | QEJ7739 |
