Release Info
| Catalog ID | KKS-SF (01) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 10, 1985 |
| Publisher | Seta |
| Developer | Random House |
| Players | 1 |
| Peripherals | Famicom Controller |

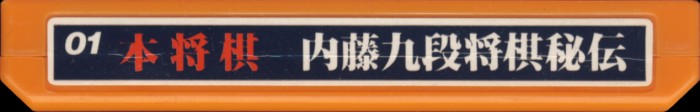

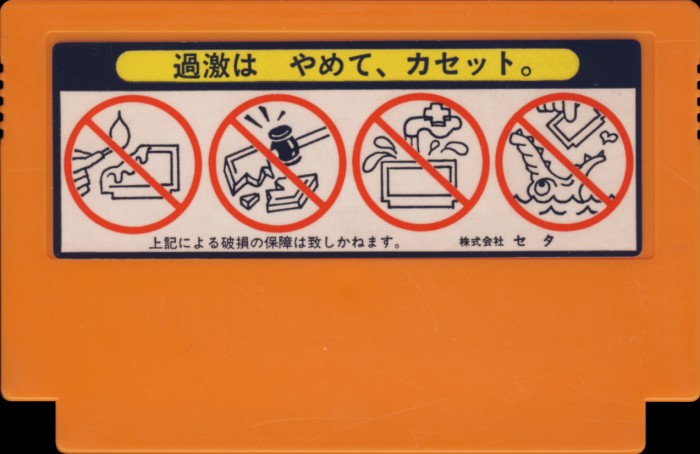

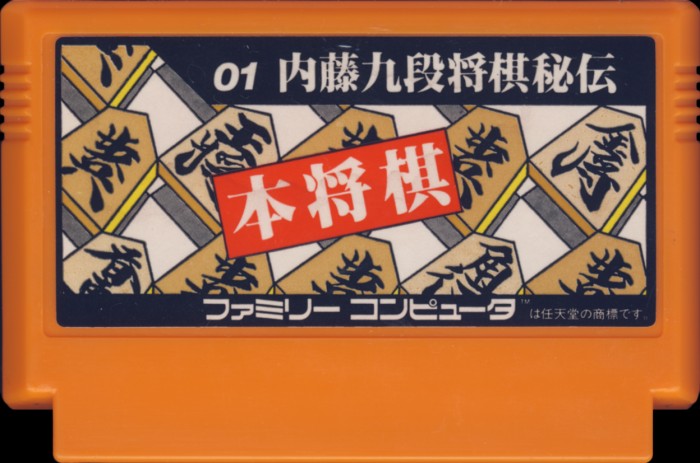

Cart Properties
| Cart Producer | Seta |
|---|---|
| Color | Orange |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | 01 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

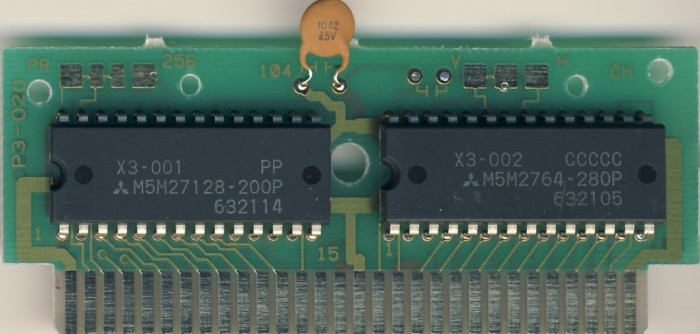

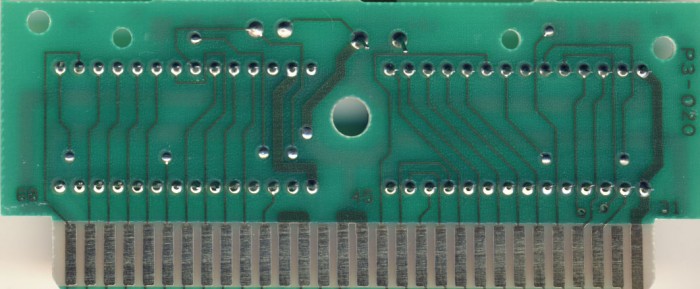

PCB Properties
| Name | P3-020 |
|---|---|
| PCB Producer | Seta |
| Manufacturer | Not Specified |
| Mfg Range | 8504 - 8632 (4) |
| Est First Run | January 1985 |
| PCB Class | SETA-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | X3-001 PP | 16 KB | F00355A0 | 4 |
| CHR0 | X3-002 CCCCC | 8 KB | 7AFBB18C | 4 |
| N/A | ROMs Combined | 24 KB | FFD9DB04 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | M5M27128 200P | PROM 16 KB | DIP-28 | 632 114 | 8632 | |
| CH | Mitsubishi | M5M2764 280P | PROM 8 KB | DIP-28 | 632 105 | 8632 |
