Release Info
| Catalog ID | KON-RC809 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 21, 1986 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC809 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

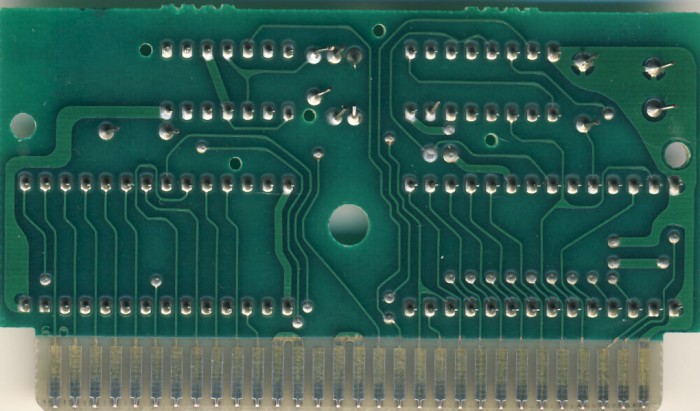

PCB Properties
| Name | 302017B |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8544 - 8606 (6) |
| Est First Run | November 1985 |
| PCB Class | KONAMI-74*139/74 |
| iNES Mapper | 87 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC809 K0P | 32 KB | EFEB0C34 | 6 |
| CHR0 | RC809 K0C | 16 KB | 0F9C7F49 | 6 |
| N/A | ROMs Combined | 48 KB | E6DF6616 | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

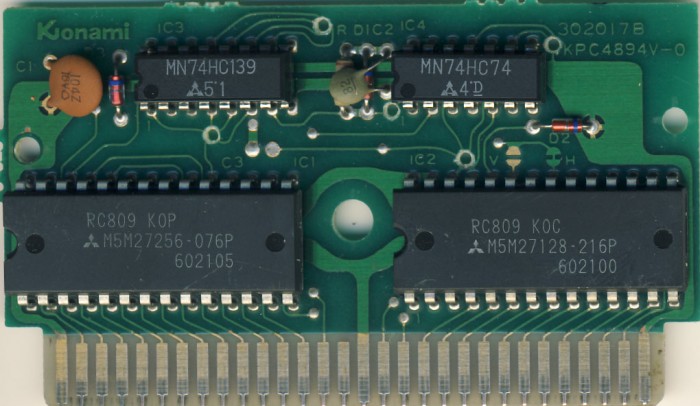

| IC1 | Mitsubishi | M5M27256 076P | PROM 32 KB | DIP-28 | 602 105 | 8602 | |
| IC2 | Mitsubishi | M5M27128 216P | PROM 16 KB | DIP-28 | 602 100 | 8602 | |
| IC3 | Panasonic | MN74HC139 | 74-139 Series | DIP-16 | 5?1 | 8501 | |
| IC4 | Panasonic | MN74HC74 | 74-74 Series | DIP-14 | 4? | 8451 |
