Release Info
| Catalog ID | NES-DQ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1989 |
| Publisher | Nintendo |
| Developer | Chunsoft |
| Players | 1 |
| Peripherals | NES Controller |

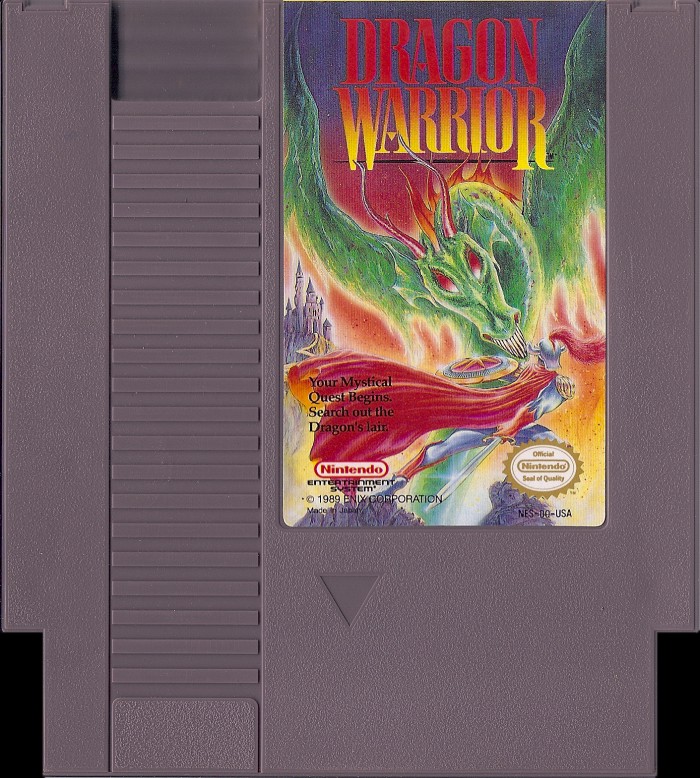

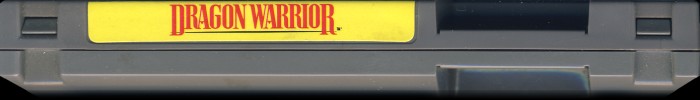

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-DQ-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 05 |

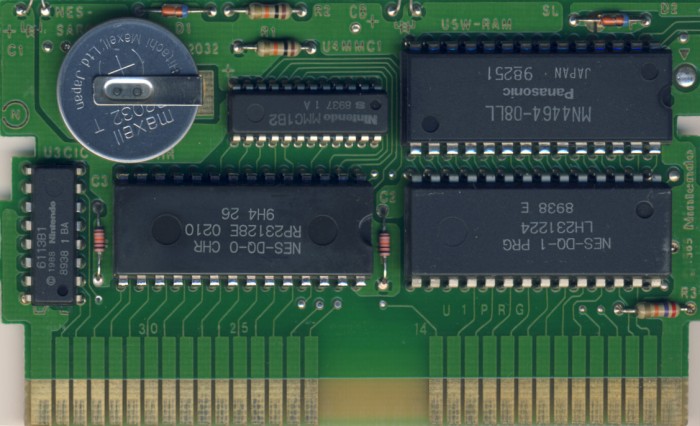

PCB Properties
| Name | NES-SAROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8928 - 8949 (5) |
| Est First Run | July 1989 |
| PCB Class | NES-SAROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-DQ-1 PRG | 64 KB | C38B1AAE | 6 |
| CHR0 | NES-DQ-0 CHR | 16 KB | 6F6ACAD9 | 8 |
| N/A | ROMs Combined | 80 KB | 2545214C | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2312 24 | Mask ROM 64 KB | DIP-28 | 8938 E | 8938 | |
| U2 CHR | Ricoh | RP23128E 0210 | Mask ROM 16 KB | DIP-28 | 9H4 26 | 8935 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8938 1 BA | 8938 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8937 1 A | 8937 | |
| U5 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 9 51 | 8934 |
