Release Info
| Catalog ID | KOE-XL |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 2, 1990 |
| Publisher | Koei |
| Developer | Koei |
| Players | 12 |
| Peripherals | Famicom Controller |

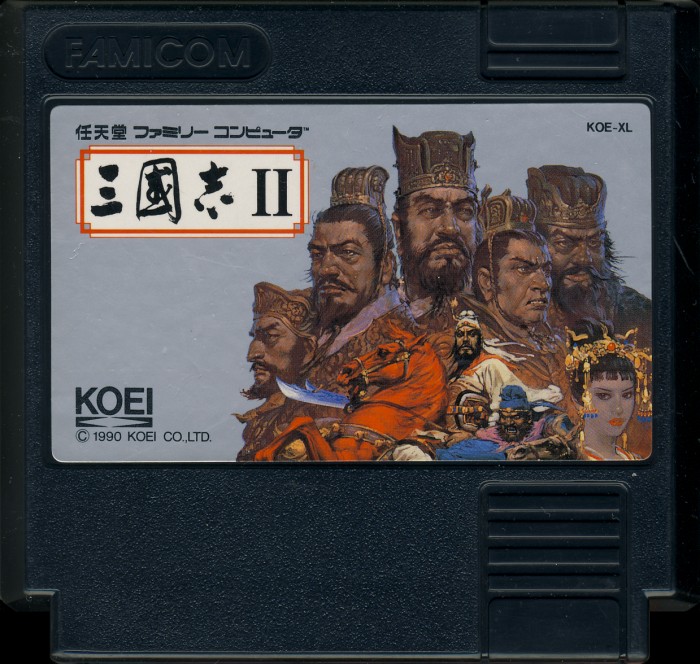

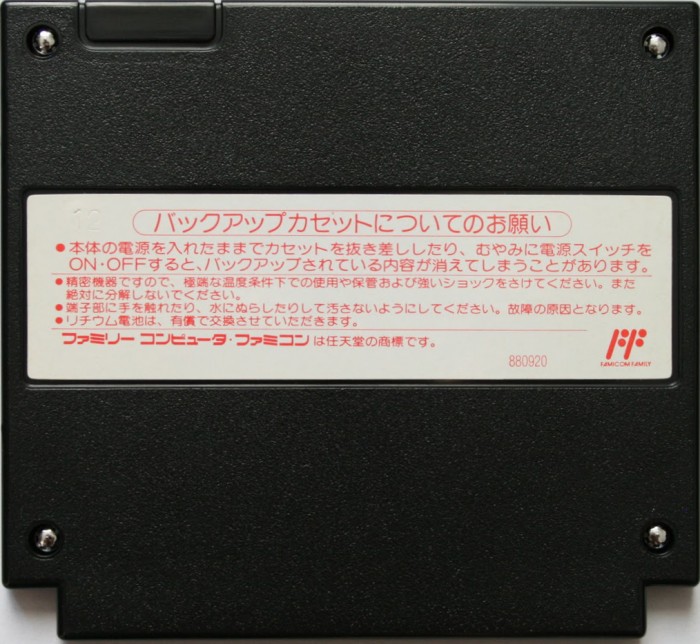

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | KOE-XL |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

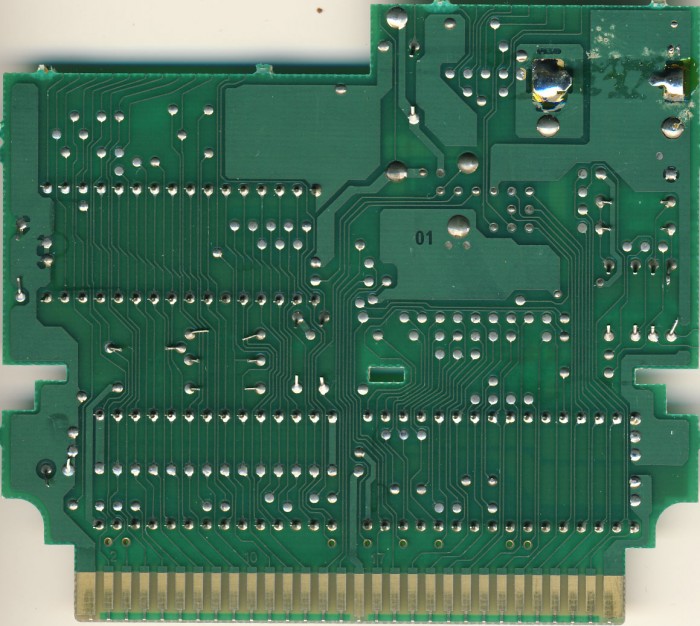

PCB Properties
| Name | HVC-EWROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9037 - 9105 (4) |
| Est First Run | September 1990 |
| PCB Class | HVC-EWROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 32 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KOE-XL-0 PRG | 256 KB | 95BA5733 | 3 |
| CHR0 | KOE-XL-0 CHR | 256 KB | 2D8DAAC3 | 4 |
| N/A | ROMs Combined | 512 KB | 184C2124 | 3 |

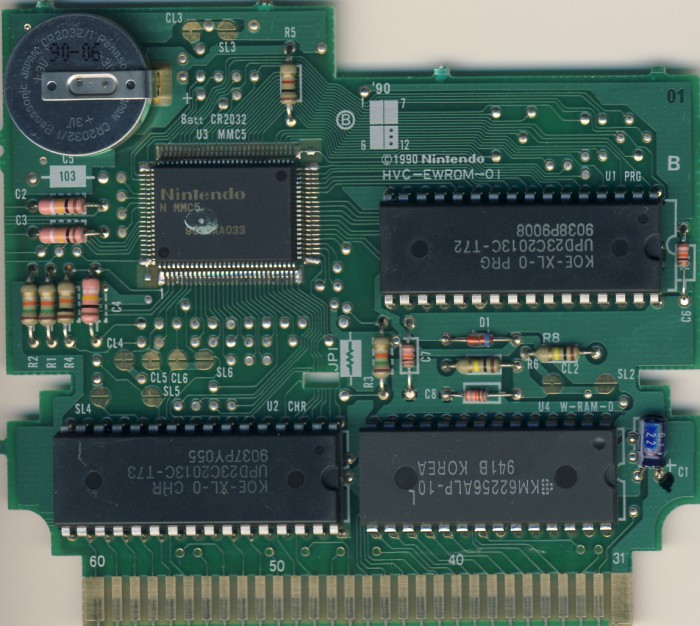

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T72 | Mask ROM 256 KB | DIP-32 | 9038 P9008 | 9038 | |
| U2 CHR | NEC | UPD23C2013C T73 | Mask ROM 256 KB | DIP-32 | 9037 PY055 | 9037 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9037 AA033 | 9037 | |
| U4 W-RAM-0 | Samsung | KM62256ALP-10L | SRAM 32 KB | DIP-28 | 941 B | 8941 |
