Release Info
| Catalog ID | KON-RC863 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 13, 1991 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |

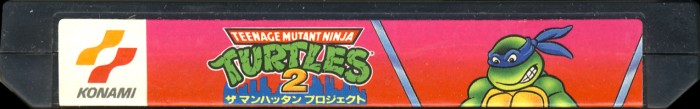

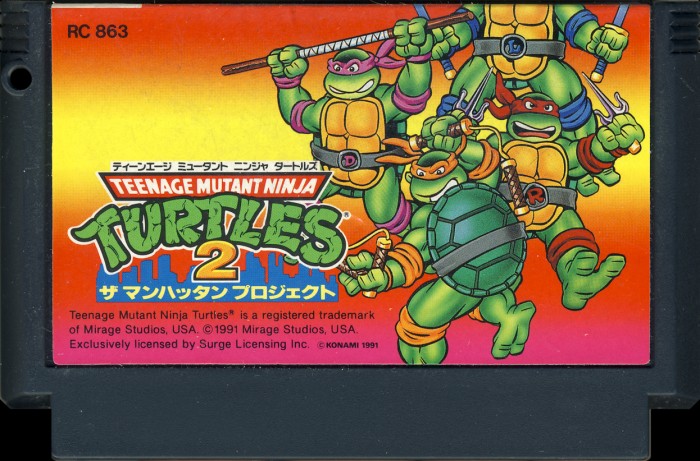

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC863 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

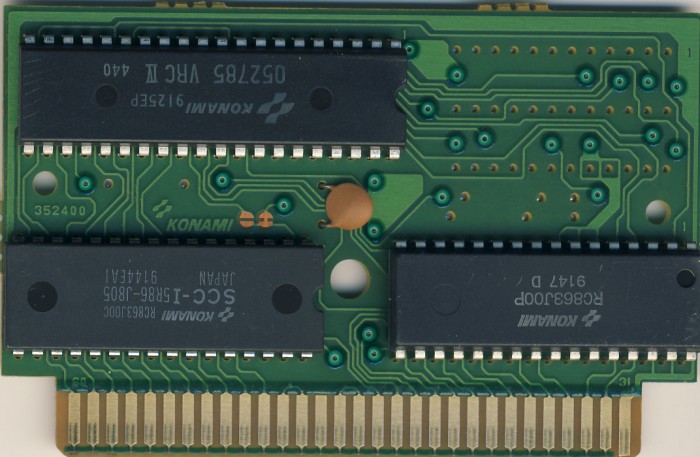

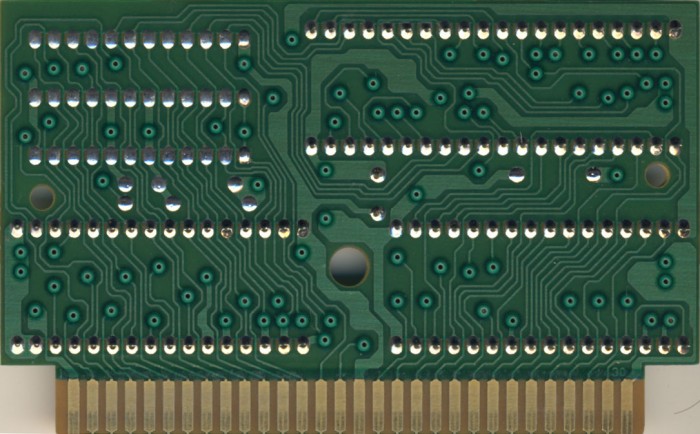

PCB Properties
| Name | 352400 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9147 - 9147 (2) |
| Est First Run | November 1991 |
| PCB Class | KONAMI-VRC-4 |
| iNES Mapper | 25 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC863J00P | 256 KB | 5F82CB7D | 2 |
| CHR0 | RC863J00C | 256 KB | 4AA9B12A | 2 |
| N/A | ROMs Combined | 512 KB | 490E8A4C | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9147 D | 9147 | ||
| Toshiba | SCC-I5R86 J805 | Mask ROM 256 KB | DIP-32 | 9144 EAI | 9144 | ||
| NEC | 052785 VRC IV 440 | Konami VRC IV | DIP-40 | 9125 EP | 9125 |
