Release Info
| Catalog ID | JF-27 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | May 29, 1990 |
| Publisher | Jaleco |
| Developer | Jaleco |
| Players | 1 |
| Peripherals | Famicom Controller |

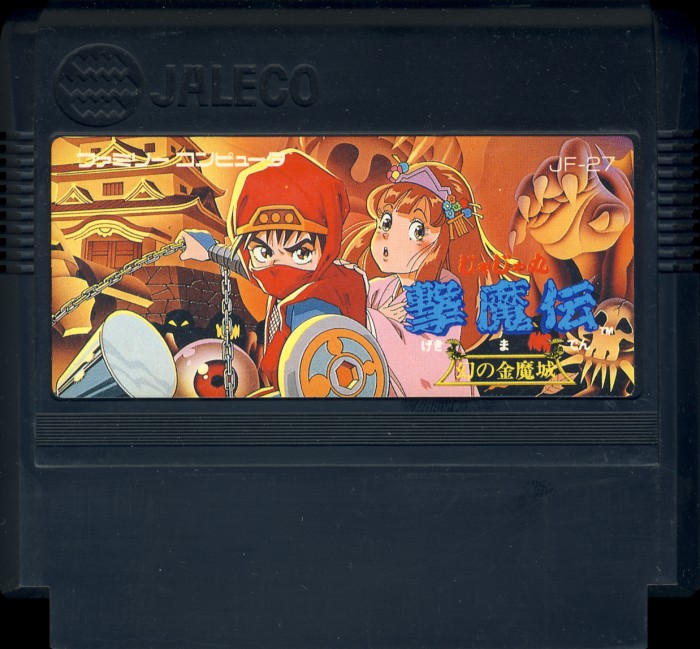

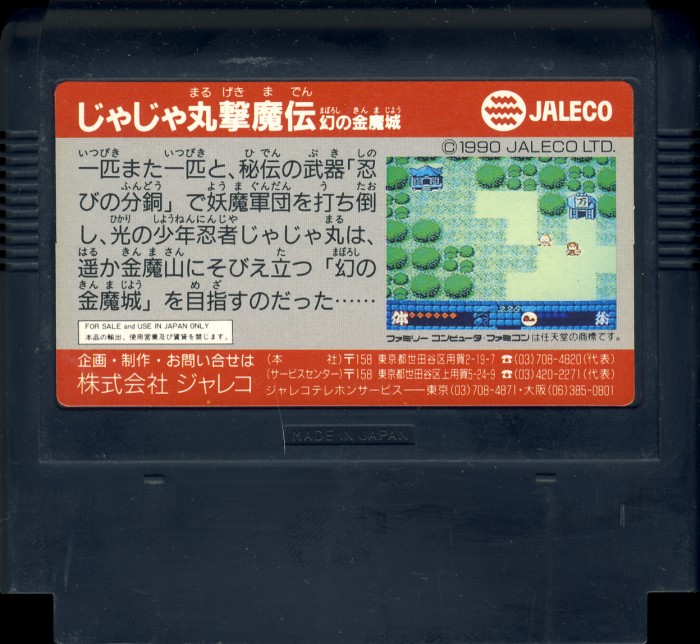

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-27 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

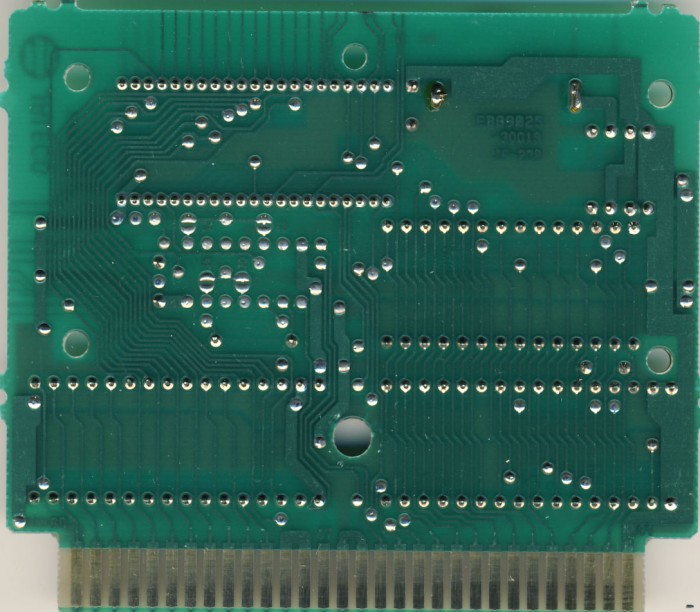

PCB Properties
| Name | JF-27B |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 9017 |
| Est First Run | April 1990 |
| PCB Class | JALECO-JF-27 |
| iNES Mapper | 18 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | SS88006 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | JF-27 PRG | 128 KB | 424EC0A6 | 1 |
| CHR0 | JF-27 CHR | 128 KB | 4CDD2416 | 1 |
| N/A | ROMs Combined | 256 KB | 0F1BABE7 | 1 |

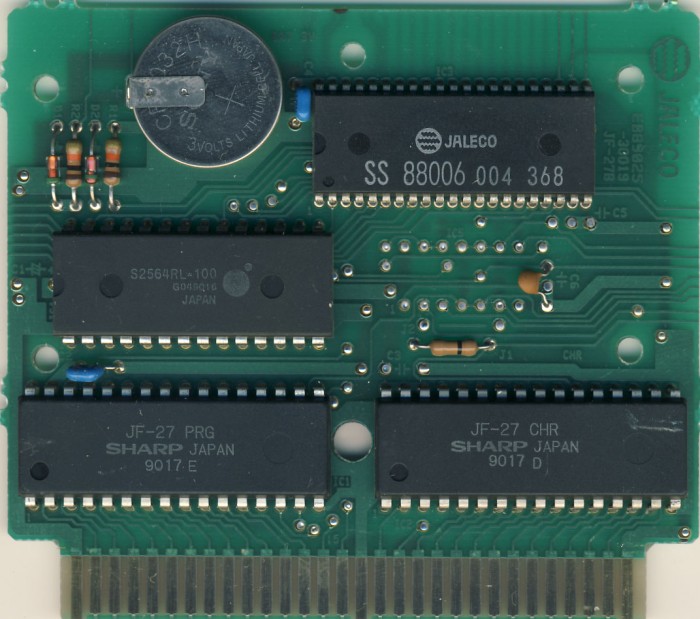

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Sharp | LH2311 | Mask ROM 128 KB | DIP-32 | 9017 E | 9017 | |
| IC2 CHR | Sharp | LH2311 | Mask ROM 128 KB | DIP-32 | 9017 D | 9017 | |
| IC3 SS88006 | Rohm | SS 88006 | Jaleco SS88006 | DIP-42 | 004 368 | 9004 | |
| IC4 WRAM | Seiko Instruments | S2564RL-100 | SRAM 8 KB | DIP-28 | 9016 G04 | 9016 |
