Release Info
| Catalog ID | JF-11 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 31, 1986 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

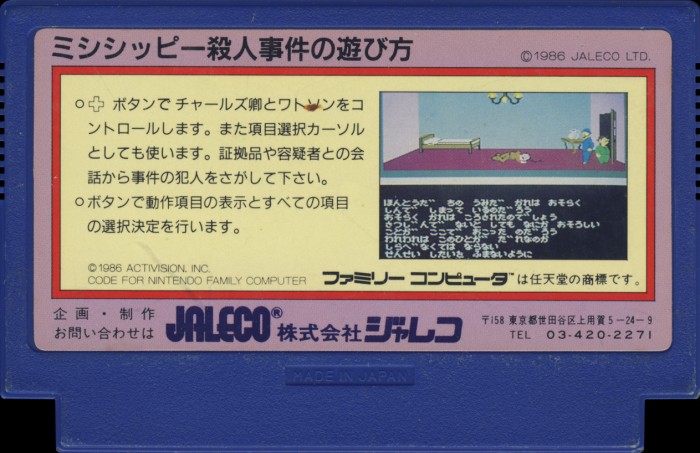

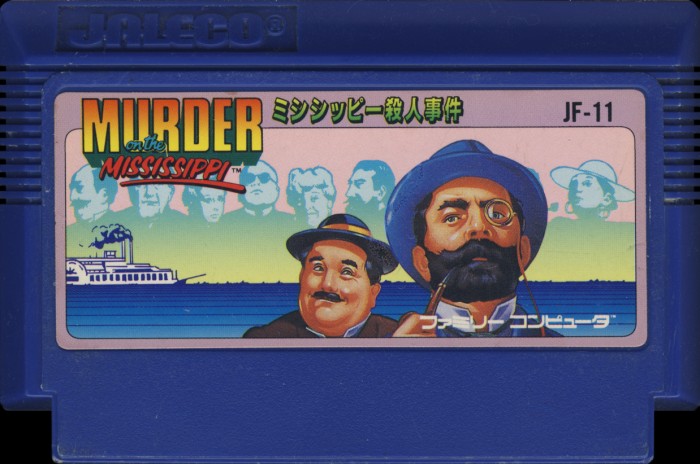

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Midnight Blue |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-11 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

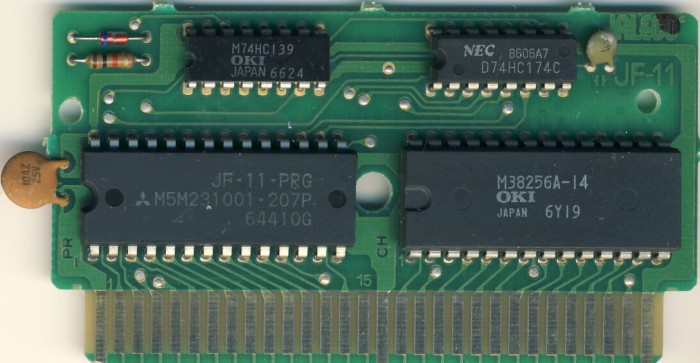

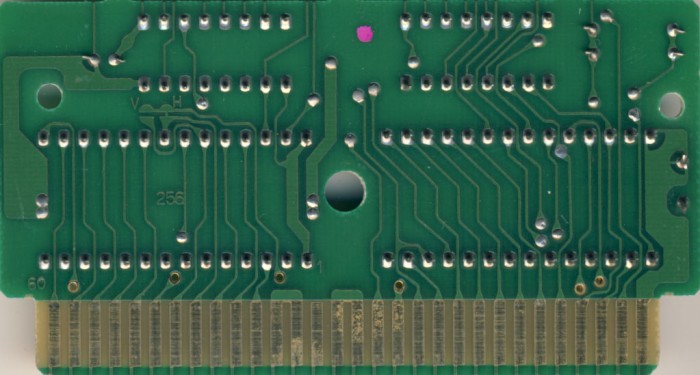

PCB Properties
| Name | JF-11 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8643 - 8644 (3) |
| Est First Run | October 1986 |
| PCB Class | JALECO-JF-11 |
| iNES Mapper | 140 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx174 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | JF-11-PRG | 128 KB | 022A819C | 3 |
| CHR0 | Not Present | 32 KB | 31CCCBA8 | 3 |
| N/A | ROMs Combined | 160 KB | E46B1C5D | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | M5M231001 207P | Mask ROM 128 KB | DIP-28 | 644 10G | 8644 | |
| CH | OKI | M38256A 14 | Mask ROM 32 KB | DIP-28 | 6Y 19 | 8644 | |
| OKI | M74HC139 | 74-139 Series | DIP-16 | 66 24 | 8622 | ||
| NEC | D74HC174C | 74-174 Series | DIP-16 | 8606 A7 | 8606 |
