Release Info
| Catalog ID | JF-13 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 26, 1987 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

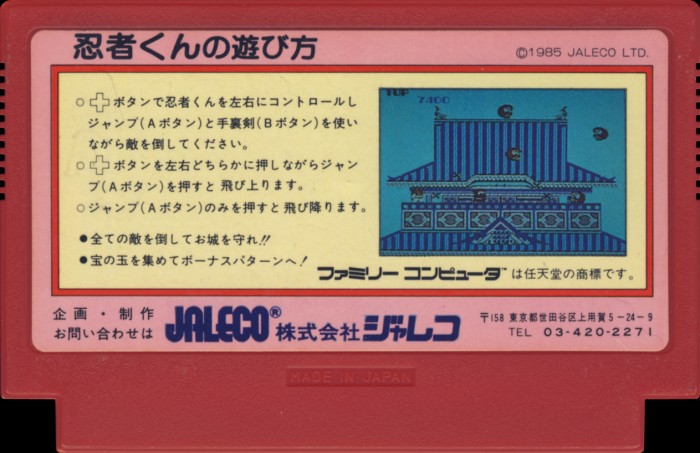

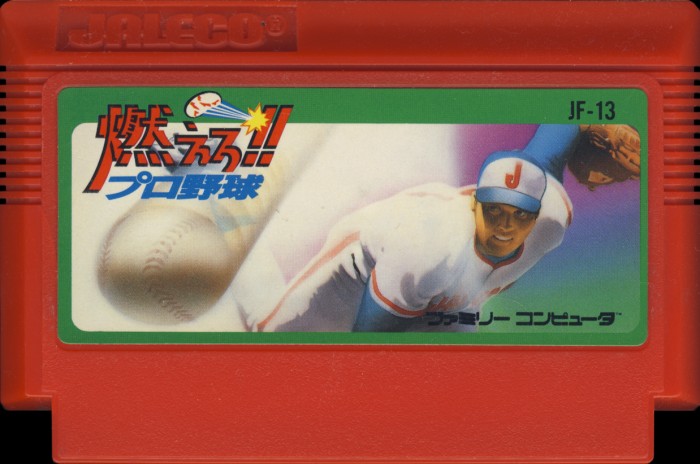

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Red |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-13 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

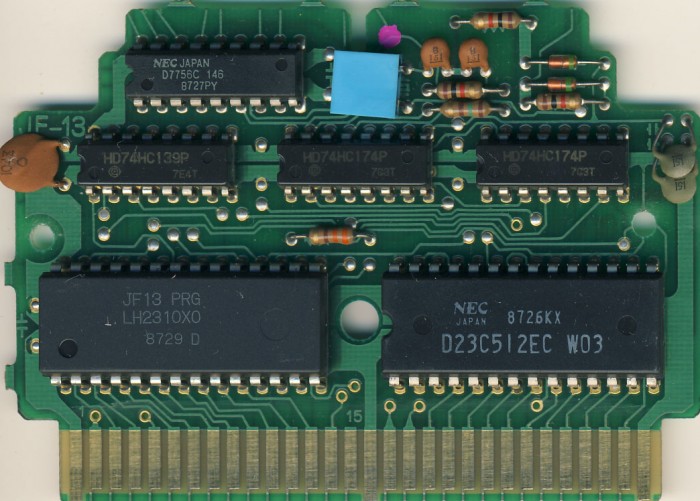

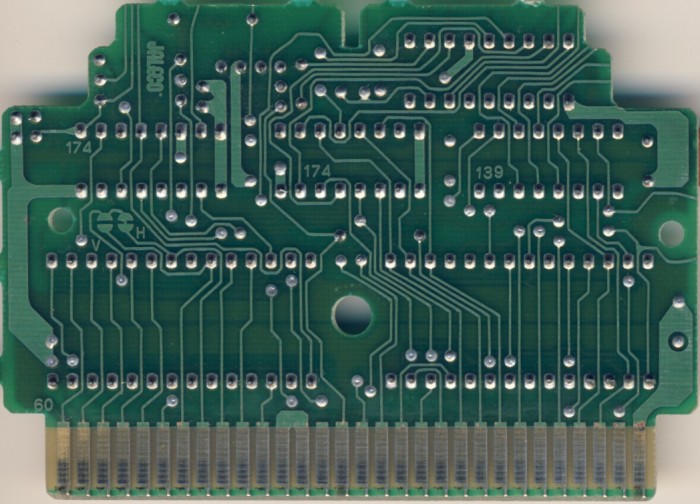

PCB Properties
| Name | JF-13 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8724 - 8746 (9) |
| Est First Run | June 1987 |
| PCB Class | JALECO-JF-13 |
| iNES Mapper | 86 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx174, 74xx174, D7756C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | JF13 PRG | 128 KB | E30B210E | 1 |
| CHR0 | CHR | 64 KB | 26A94526 | 9 |
| N/A | ROMs Combined | 192 KB | 90F3F161 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 X0 | Mask ROM 128 KB | DIP-28 | 8729 D | 8729 | ||
| NEC | D23C512EC W03 | Mask ROM 64 KB | DIP-28 | 8726 KX | 8726 | ||
| 139 | Hitachi | HD74HC139P | 74-139 Series | DIP-16 | 7E4 T | 8722 | |
| 174 | Hitachi | HD74HC174P | 74-174 Series | DIP-16 | 7G3 T | 8730 | |
| 174 | Hitachi | HD74HC174P | 74-174 Series | DIP-16 | 7G3 T | 8730 | |
| NEC | D7756C 146 | ADPCM Speech Chip 256 kb | DIP-18 | 8727 PY | 8727 |
