Release Info
| Catalog ID | JF-07 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 17, 1986 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

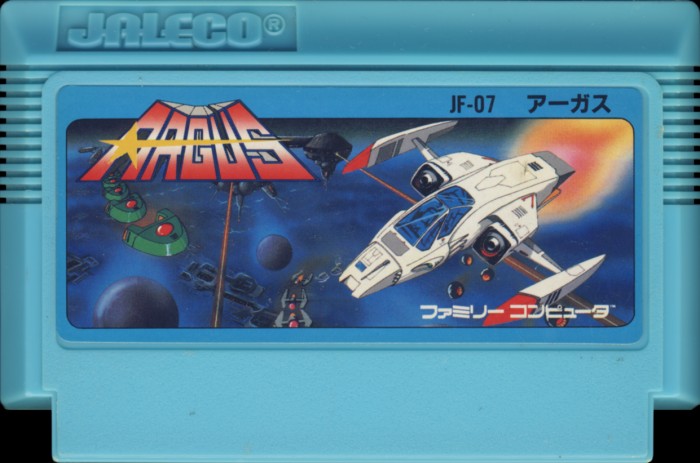

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Aqua |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-07 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

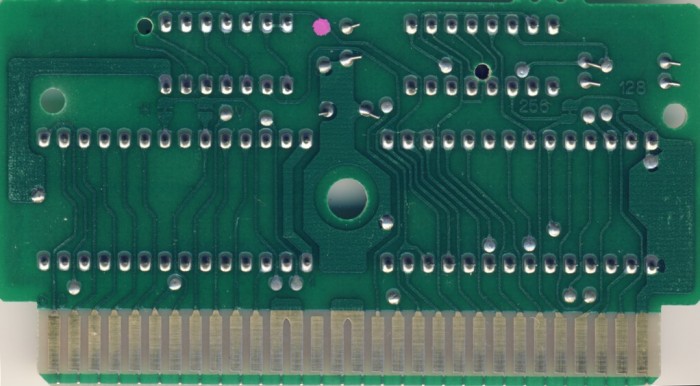

PCB Properties
| Name | JF-07 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8614 - 8616 (3) |
| Est First Run | April 1986 |
| PCB Class | JALECO-JF-07 |
| iNES Mapper | 87 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | C9C2A1EC | 3 |
| CHR0 | JF-07C | 16 KB | BE773669 | 3 |
| N/A | ROMs Combined | 48 KB | 656FA3B5 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Sharp | LH2357 36 | Mask ROM 32 KB | DIP-28 | 8614 E | 8614 | |
| CH | Sharp | RP2D129 0901 | Mask ROM 16 KB | DIP-28 | 6D2 23 | 8616 | |
| NEC | D74HC139C | 74-139 Series | DIP-16 | 8607 A7 | 8607 | ||
| NEC | D74HC74C | 74-74 Series | DIP-14 | 8605 A7 | 8605 |
