Release Info
| Catalog ID | JF-09 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 22, 1986 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

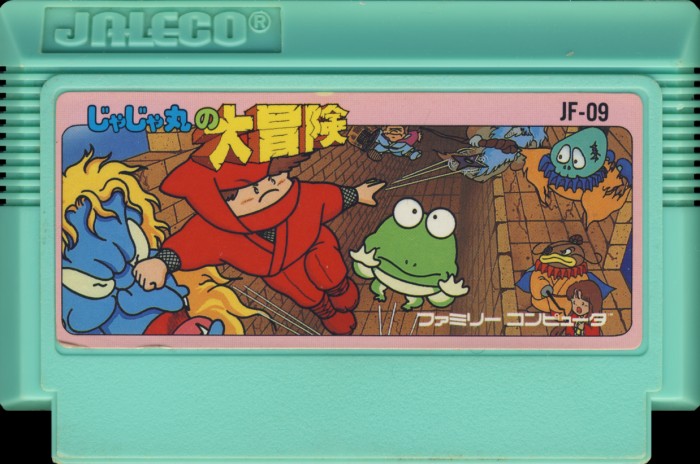

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Aqua |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-09 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

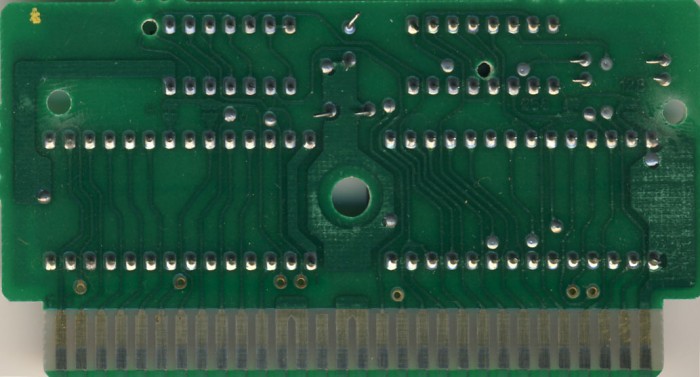

PCB Properties
| Name | JF-09 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8631 - 8632 (3) |
| Est First Run | August 1986 |
| PCB Class | JALECO-JF-09 |
| iNES Mapper | 87 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | E6F5FDD2 | 3 |
| CHR0 | Not Present | 32 KB | 957C94AE | 3 |
| N/A | ROMs Combined | 64 KB | 61B4295A | 3 |

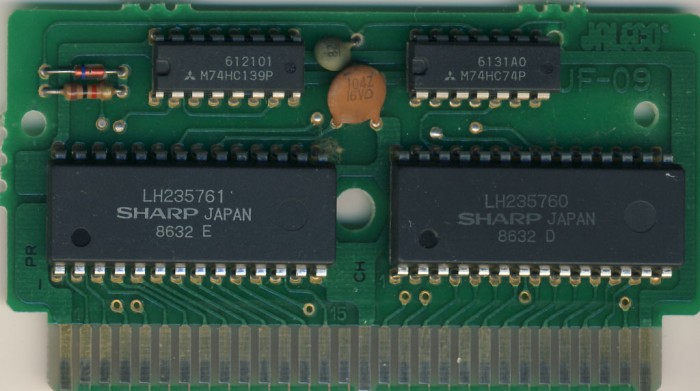

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Sharp | LH2357 61 | Mask ROM 32 KB | DIP-28 | 8632 E | 8632 | |
| CH | Sharp | LH2357 60 | Mask ROM 32 KB | DIP-28 | 8632 D | 8632 | |
| Mitsubishi | M74HC139P | 74-139 Series | DIP-16 | 612 101 | 8612 | ||
| Mitsubishi | M74HC74P | 74-74 Series | DIP-14 | 613 1A0 | 8613 |
