Release Info
| Catalog ID | AVE-KK |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | AVE |
| Developer | Bitmasters |
| Players | 2 |
| Peripherals | NES Controller |

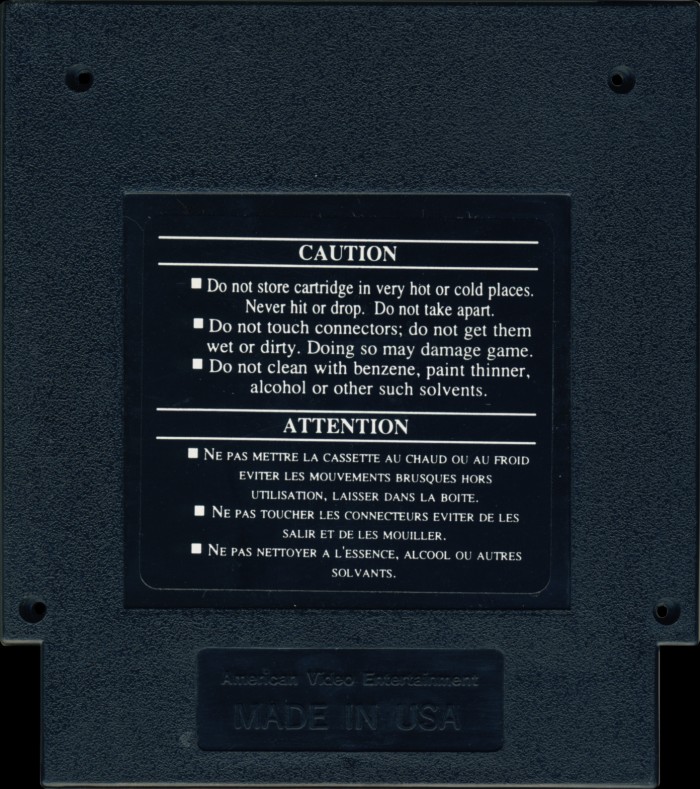

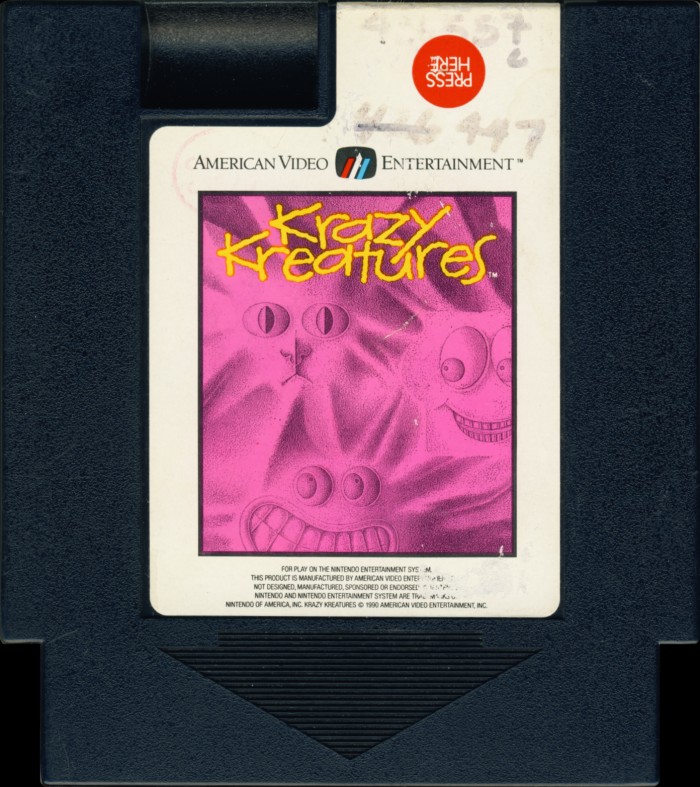

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Square Corner |
| Embossed Text | American Video Entertainment Made in USA |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

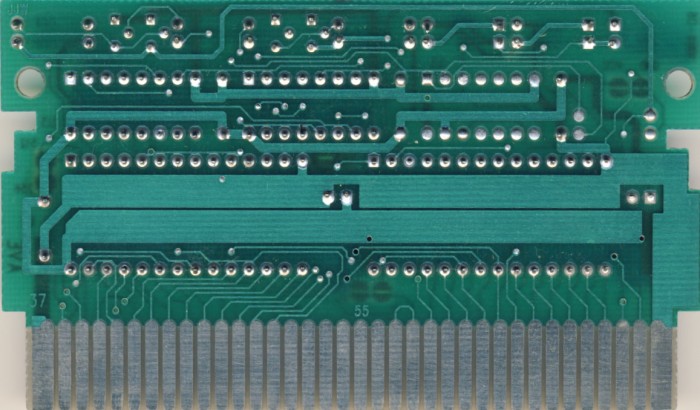

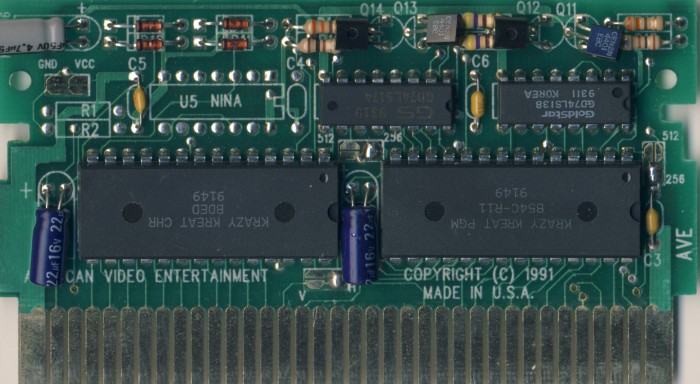

PCB Properties
| Name | NINA-06 |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9045 - 9319 (4) |
| Est First Run | November 1990 |
| PCB Class | AVE-NINA-06 |
| iNES Mapper | 79 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx138, 74xx174 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KRAZY KREAT PGM B54C-R11 | 32 KB | 1D873633 | 3 |
| CHR0 | KRAZY KREAT CHR BDED | 32 KB | 98C888E0 | 5 |
| N/A | ROMs Combined | 64 KB | 637FE65C | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | __Unknown | 23256 | Mask ROM 32 KB | DIP-28 | 9149 | 9149 | |
| U2 | __Unknown | 23256 | Mask ROM 32 KB | DIP-28 | 9149 | 9149 | |
| U3 | GoldStar | GD74LS138 | 74-138 Series | DIP-16 | 9311 | 9311 | |
| U4 | GoldStar | GD74LS174 | 74-174 Series | DIP-16 | 9319 | 9319 |
