Release Info
| Catalog ID | NES-ZA-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1987 |
| Publisher | FCI |
| Developer | Compile |
| Players | 1 |
| Peripherals | NES Controller |

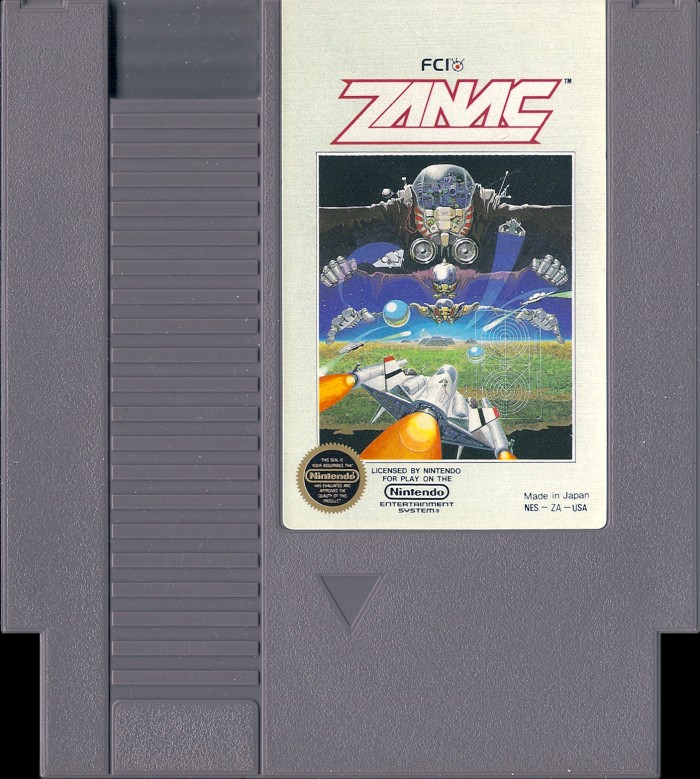

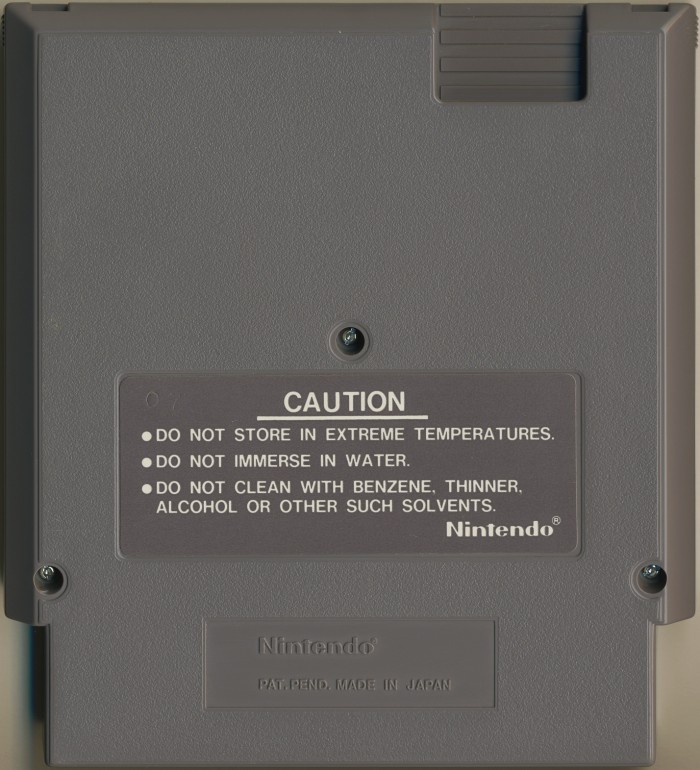

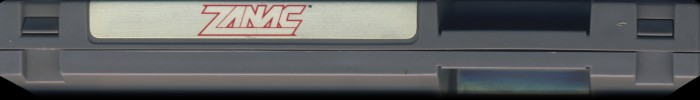

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-ZA-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 00 |
PCB Properties
| Name | NES-UN-ROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8738 - 8738 (3) |
| Est First Run | September 1987 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3193A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-ZA-0 PRG | 128 KB | E292AA10 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2315 95 | Mask ROM 128 KB | DIP-28 | 8738 D | 8738 | |
| CHR RAM | OKI | M5165L-20 | SRAM 8 KB | DIP-28 | 67 070 | 8627 | |
| CIC | Sharp | 3193A | Nintendo CIC | DIP-16 | 8717 A | 8717 | |
| LS161N | Toshiba | 74HC161AP | 74-161 Series | DIP-16 | 8734 H | 8734 | |
| LS32 | Toshiba | 74HC32AP | 74-32 Series | DIP-14 | 8734 H | 8734 |
